HIKVISION DS-K1101MK User Manual

DS-K1100 Series Card Reader
7
Chapter 2 Installation
2.1 Installing PSAM Card
PSAM card slot is only available for CPU card reader.
Insert the PSAM card into the slot according to the direction
shown below.

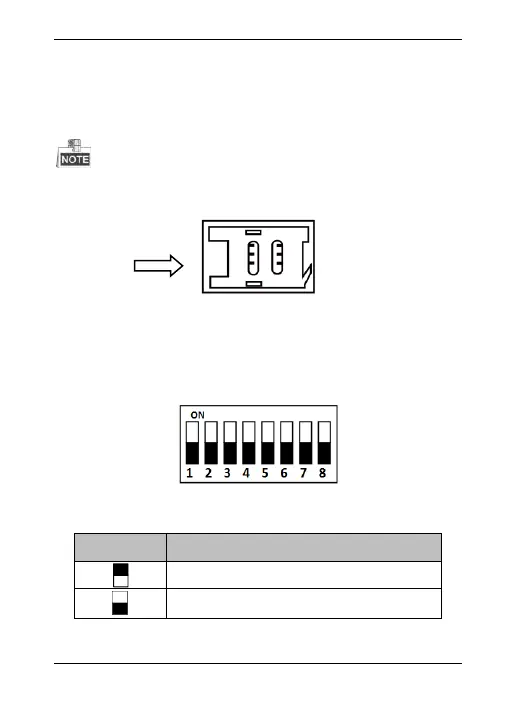

Figure 2-1 PSAM Card Slot
2.2 Introduction for DIP Switch
The DIP switch module is shown below. The No. of DIP switch
from left to right is 1 ~ 8.
Figure 2-2 DIP Switch Module
Table 2-1 Description of DIP Switch
Icon
Description
Represent 1 in binary mode
Represent 0 in binary mode
For example, binary value of the following status is: 0000 1100.

HIKVISION DS-K1101MK Specifications

General

Type	Basic access control reader
Certification	FCC, CE
Product color	Black
Housing material	Acrylonitrile butadiene styrene (ABS)
Keypad integrated	Yes
Access code reader	No
Authentication type	Access chip/card, Password
Keypad number of keys	12
International Protection (IP) code	IP64
PC connected	-
DC voltage range	12 - 12 V
Power consumption	500 mA
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	92.3 mm
Width	132 mm
Height	20.5 mm
Weight	140 g
