DS-K1100 Series Card Reader
12

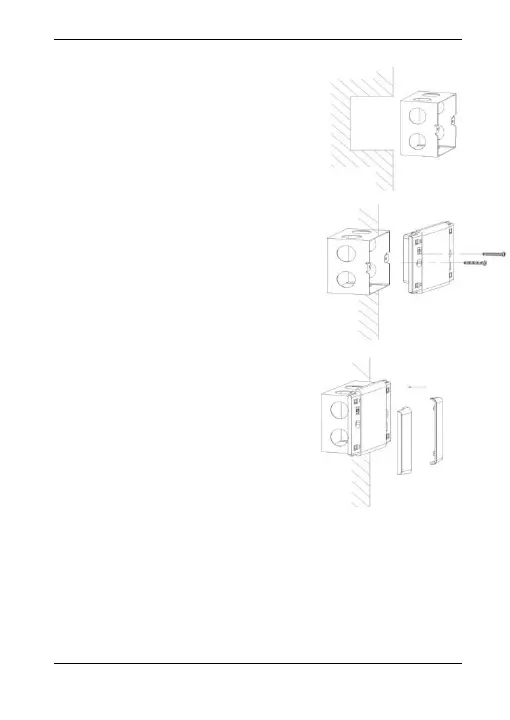

1. Fix the gang box on the wall or
other place.
2. Connect the cables between
controller and card reader. For
details, refer to 2.4 Wiring
Cables.
3. Push the card reader to match
the fixed gang box.
4. Fasten the screw to keep the
components together.
5. Fix the side cover onto the card
reader, press the cover to make
it tightly fit the reader.

HIKVISION DS-K1101MK Specifications

General

Type	Basic access control reader
Certification	FCC, CE
Product color	Black
Housing material	Acrylonitrile butadiene styrene (ABS)
Keypad integrated	Yes
Access code reader	No
Authentication type	Access chip/card, Password
Keypad number of keys	12
International Protection (IP) code	IP64
PC connected	-
DC voltage range	12 - 12 V
Power consumption	500 mA
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	92.3 mm
Width	132 mm
Height	20.5 mm
Weight	140 g
