HIKVISION DS-K1102M Manual

Title:
DS-K1100 Series Card Readers Connect
to DS-K2600 Series Access Controllers
by RS-485
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
3 of 4
For example, if you want to swipe card to open the first door, no matter your access controller is DS-
K2601, DS-K2602 or DS-K2604, the binary value of the entrance card reader should be 1000 0000 and
the binary value of the exit card reader should be 0100 0000.

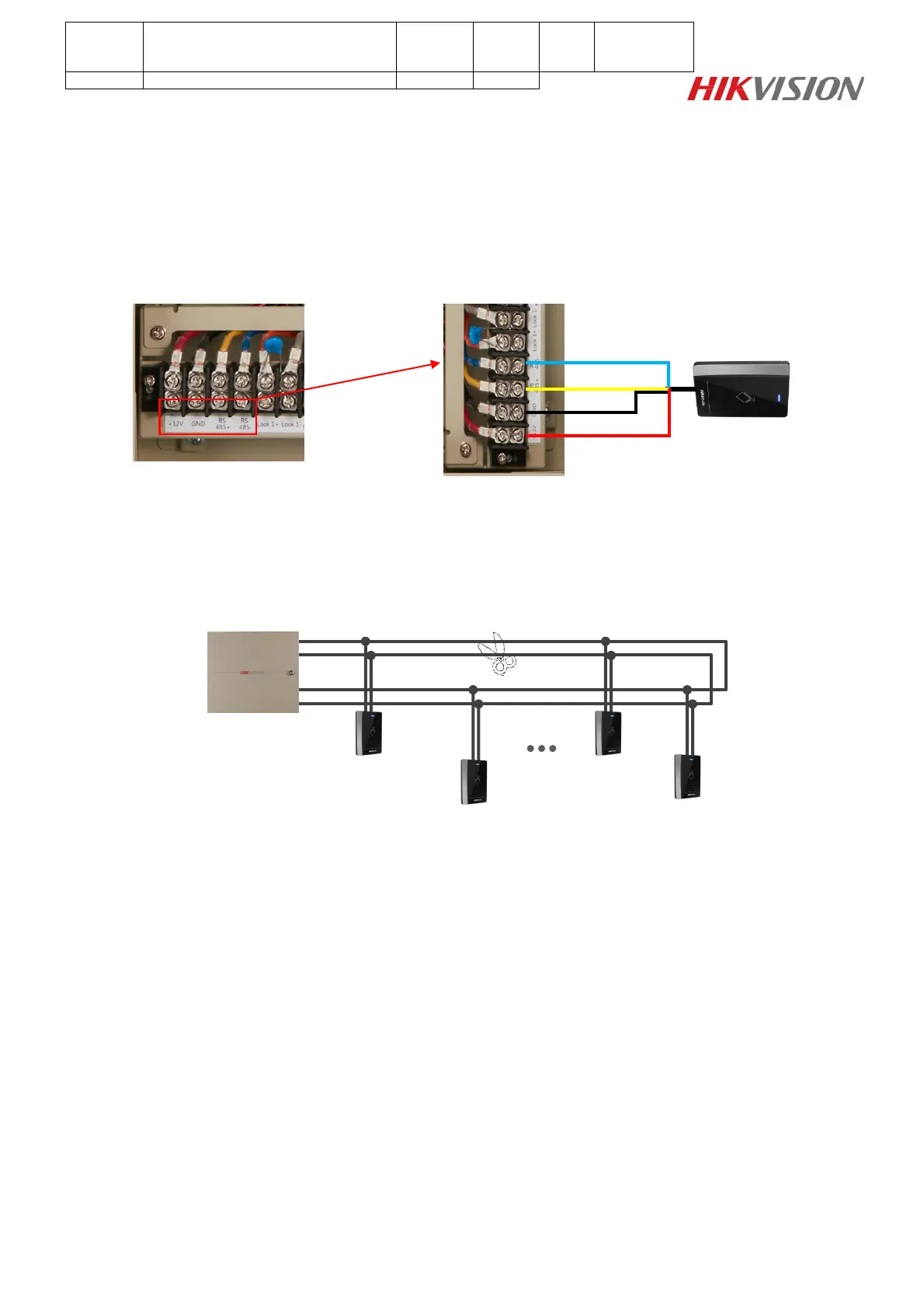

Step 2: RS-485 Wiring
Please connect card reader to access controller as following picture:
Note
1. Actually you can find RS485 A/B/C/D interfaces in access controller; we extend RS485 A interface
to the wiring distribution for easier cable connection and we use RS485B interface for backup, the
cable connection as following picture:
2. About wiring materials, we suggest customer choose RVVP cable.
RS485-
RS485+
GND
+12V
RS485 A+
RS485 A-
RS485 B+
RS485 B-

HIKVISION DS-K1102M Specifications

General

Internal	No
Certification	IP64 CE, FCC
Product color	Black
LED indicators	Power, Status
Housing material	Acrylonitrile butadiene styrene (ABS)
Compatible memory cards	-
Input voltage	12 V
Output current	500 mA
Power source type	DC
Power consumption (max)	2 W
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Interface	RS485 / Wiegand
Supported protocols	Mifare
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
Built-in processor	Yes
International Protection (IP) code	IP64
Frequency	13.56 MHz
Maximum read range	50 mm

Weight and Dimensions

Depth	121 mm
Width	86.5 mm
Height	14 mm
Weight	140 g
