HIKVISION DS-K1103MK User Manual

DS-K1100 Series Card Reader
7

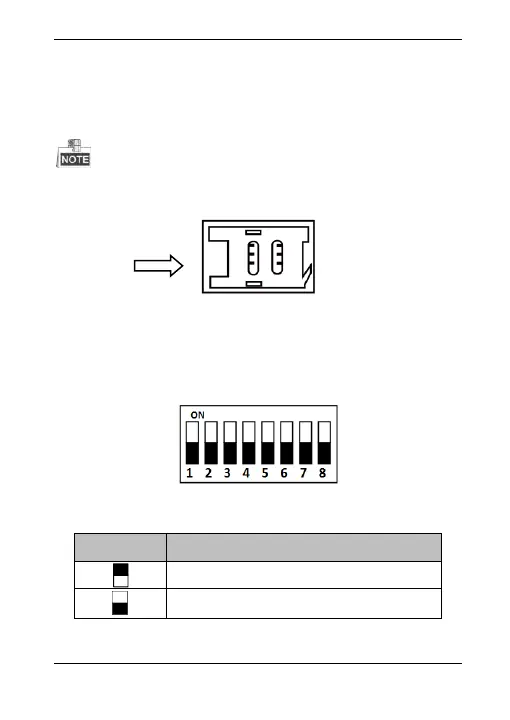

Chapter 2 Installation
2.1 Installing PSAM Card
PSAM card slot is only available for CPU card reader.
Insert the PSAM card into the slot according to the direction
shown below.
Figure 2-1 PSAM Card Slot
2.2 Introduction for DIP Switch
The DIP switch module is shown below. The No. of DIP switch
from left to right is 1 ~ 8.
Figure 2-2 DIP Switch Module
Table 2-1 Description of DIP Switch
Icon
Description
Represent 1 in binary mode
Represent 0 in binary mode
For example, binary value of the following status is: 0000 1100.

HIKVISION DS-K1103MK Specifications

General

UN number	-
Front camera	No
RS-485 ports	1
Type	Basic access control reader
Certification	FCC, CE
Product color	Black, Grey
LED indicators	Status
RFID frequency	13.56 MHz
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Access code reader	Yes
Authentication type	Access chip/card
Keypad number of keys	12
Access chip/card reader type	Contactless
Contactless working distance	50 mm
International Protection (IP) code	IP64
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Input voltage	12 V
Power consumption	500 mA
Power consumption (typical)	2 W

Weight and Dimensions

Depth	14.7 mm
Width	76 mm
Height	129 mm
Weight	150 g
