HIKVISION DS-K1103MK User Manual

DS-K1100 Series Card Reader
10
Yellow
Blue
Black
Red
Black
Red
Green
White
Purple
Orange
Brown
Controller
Card Reader

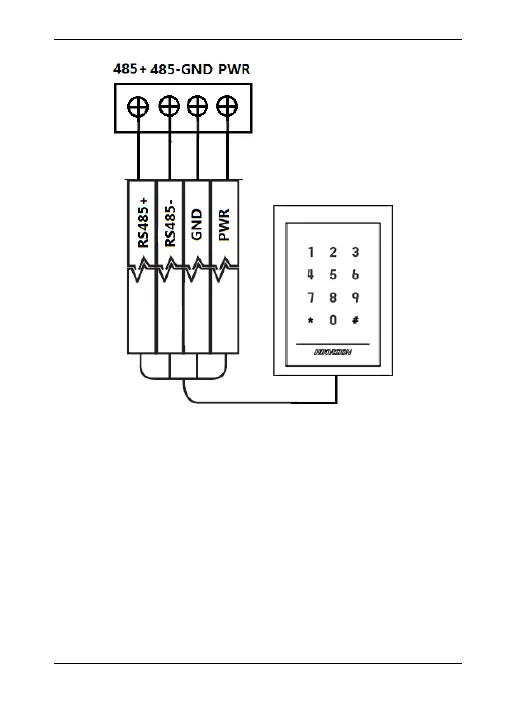

Figure 2-4 Wiring for RS-485 Communication Mode
Steps for Wiegand communication mode:
1. Set the DIP switch of No. 6 as 1.
2. Set the DIP switch of No. 5 and 7 for reading card mode and
Wiegand protocol. For details, please refer to 2.2
Introduction for DIP Switch.
3. Wiring the cable between controller and card reader as
shown below.

HIKVISION DS-K1103MK Specifications

General

UN number	-
Front camera	No
RS-485 ports	1
Type	Basic access control reader
Certification	FCC, CE
Product color	Black, Grey
LED indicators	Status
RFID frequency	13.56 MHz
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Access code reader	Yes
Authentication type	Access chip/card
Keypad number of keys	12
Access chip/card reader type	Contactless
Contactless working distance	50 mm
International Protection (IP) code	IP64
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Input voltage	12 V
Power consumption	500 mA
Power consumption (typical)	2 W

Weight and Dimensions

Depth	14.7 mm
Width	76 mm
Height	129 mm
Weight	150 g
