2.
Set the DIP switch of No. 5 and 7 for reading card mode and Wiegand protocol. For details, refers
to DIP Switch Descripon .
3.

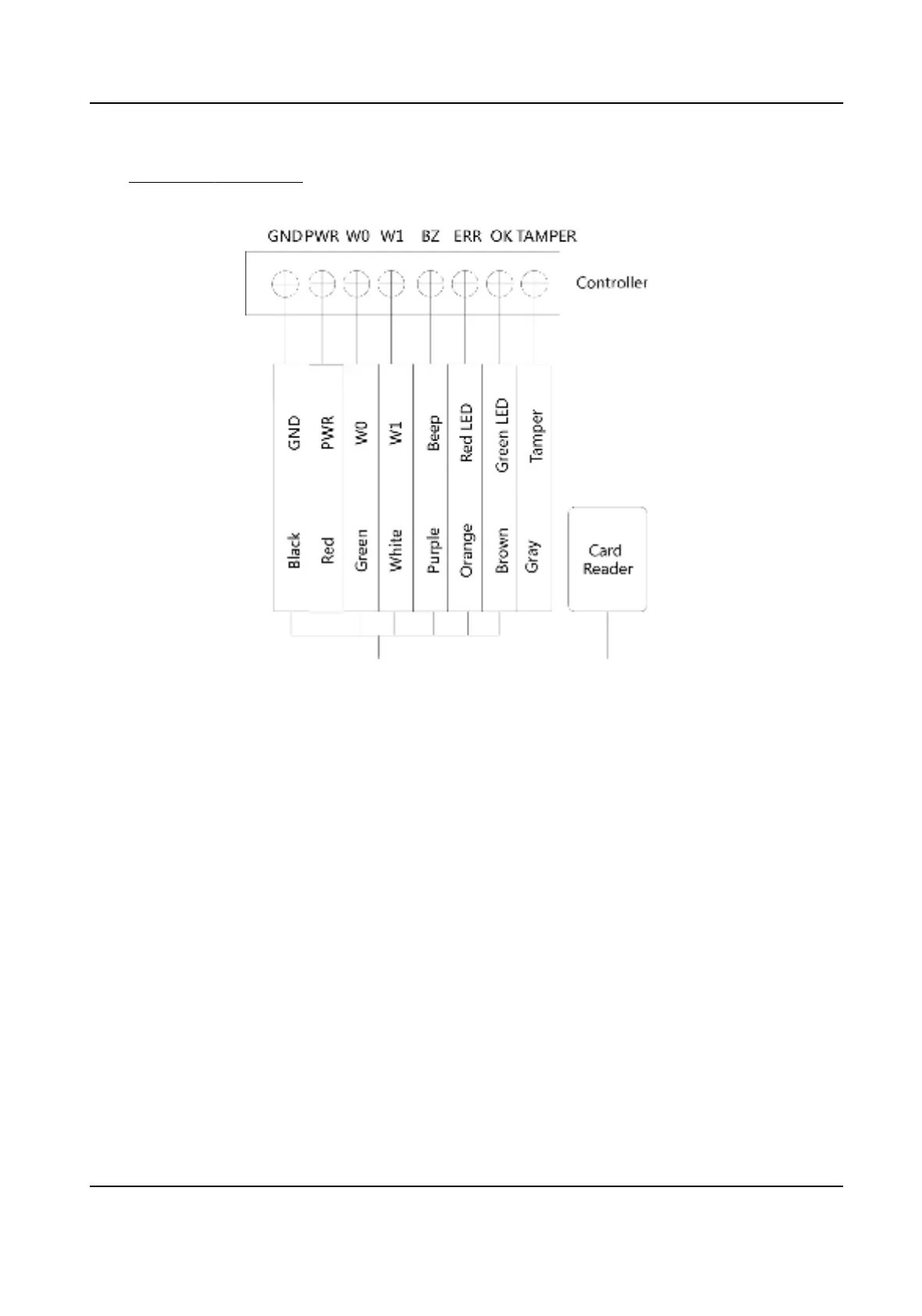

Wiring the cable between controller and card reader as shown below.
Figure 3-2 Wiring for Wiegand Communicaon Mode
DS-K1109 Series Card Reader User Manual
7
