HIKVISION DS-K1T341CMFW User Manual

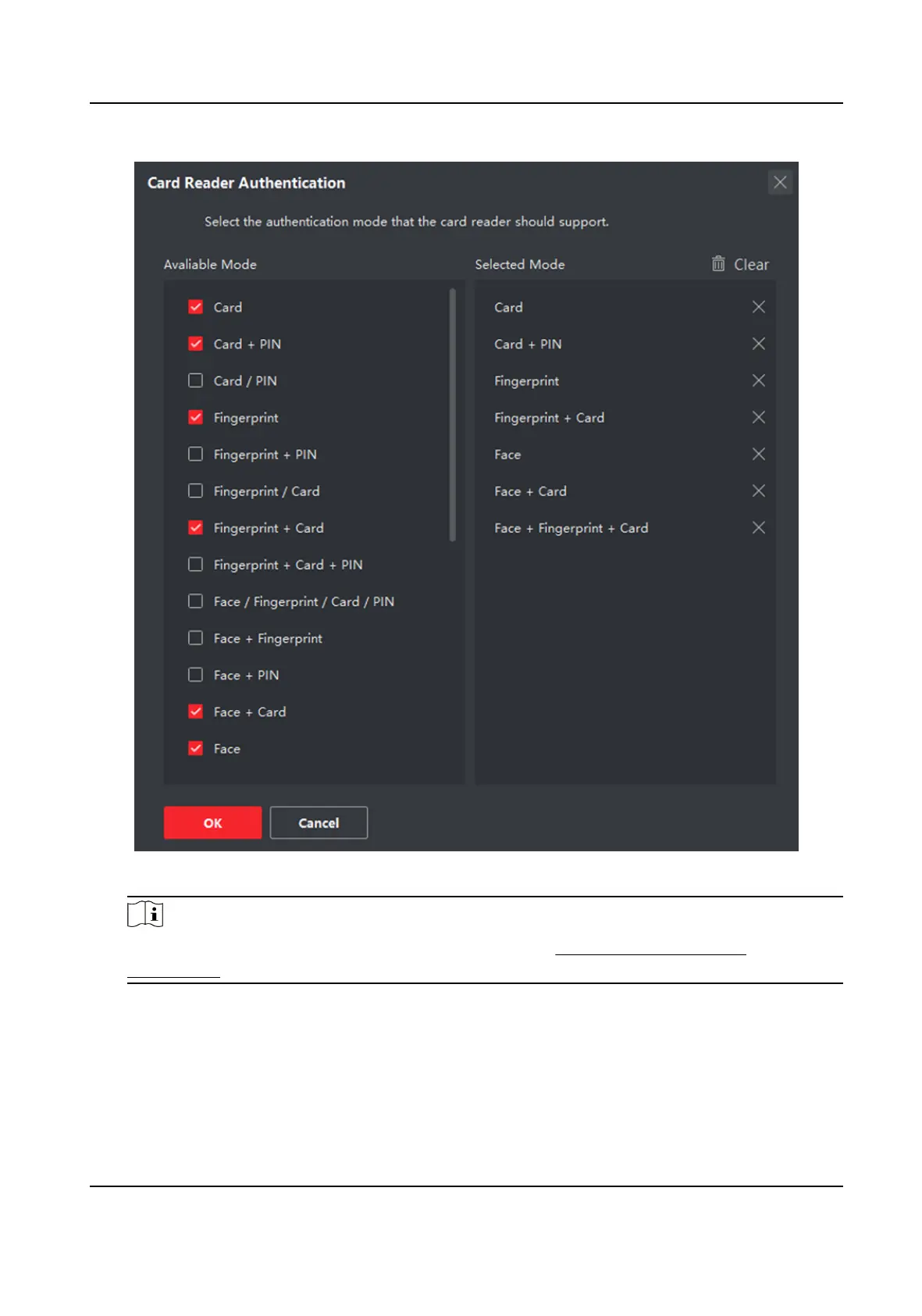

Figure 9-10 Select Card Reader Authencaon Mode
Note
PIN refers to the PIN code set to open the door. Refer to Congure Access Control
Informaon .
2) Check the modes in the Available Mode list and they will be added to the selected modes list.
3) Click OK.
Aer selecng the modes, the selected modes will display as icons with dierent color.
4.
Click the icon to select a card reader authencaon mode, and drag the cursor to draw a color
bar on the schedule, which means in that period of
me, the card reader authencaon is valid.
5.
Repeat the above step to set other me periods.
DS-K1T341C Series Face Recognion Terminal User Manual
169

HIKVISION DS-K1T341CMFW Specifications

General

Type	Face recognition terminal
Face capacity	3000
Product color	Black, Grey
Cards capacity	3000 cards
Event capacity	150000
Wiegand interface	Yes
Fingerprint reader	-
Authentication type	Access chip/card, Face recognition
Fingerprint sensor type	Optical
Face recognition accuracy	99 %
Face recognition distance	1 - 2 m
Face recognition duration	0.2 s
Access chip/card reader type	Contactless
International Protection (IP) code	IP65
Display type	LCD
Screen shape	Flat
Display diagonal	4.3 \
Maximum resolution	272 x 480 pixels
Touchscreen technology	Capacitive
Sensor type	CMOS
Total megapixels	2 MP
Front camera type	Dual camera
Operating system installed	Linux
Ethernet LAN data rates	10, 100 Mbit/s
Input current	2 A
Input voltage	12 - 24 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-30 - 60 °C
