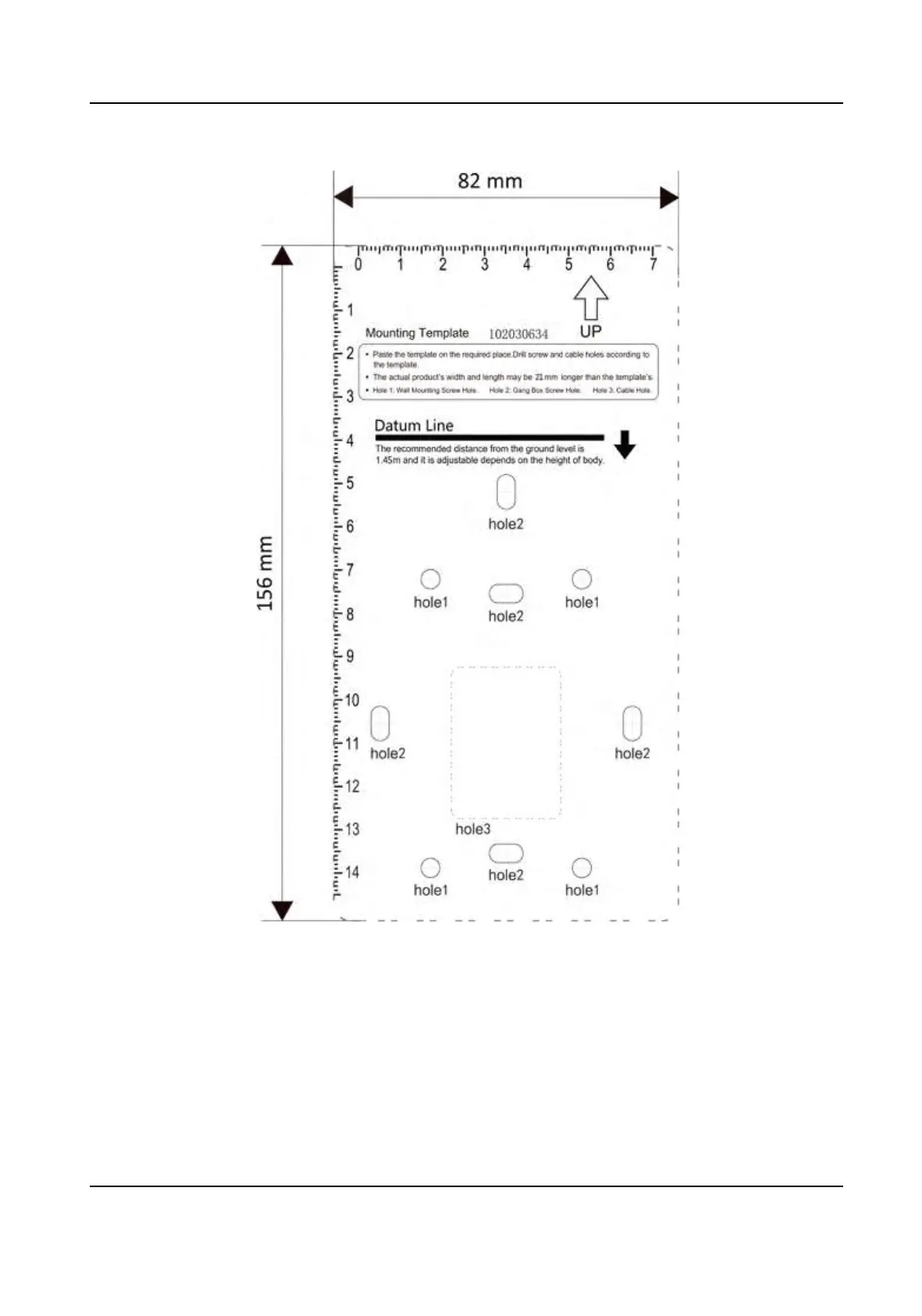

Figure 3-5 Mounng Template
2.
Drill holes on the wall or other surface according to the Hole 1 on the mounng template.
3.
Insert the plasc sleeve of expansion bolts into the holes.
4.
Align the holes to the mounng plate and secure the mounng plate on the wall with the 2
supplied screws (KA4×22-SUS).
