Note
●
The Uninterpretable Power Supply (UPS) is required.
●
The re system (NC and COM, normally closed when powering o) is connected with the lock
and the power supply in series. When an re alarm is triggered, the door remains open. In
normal mes, NC and COM are open.

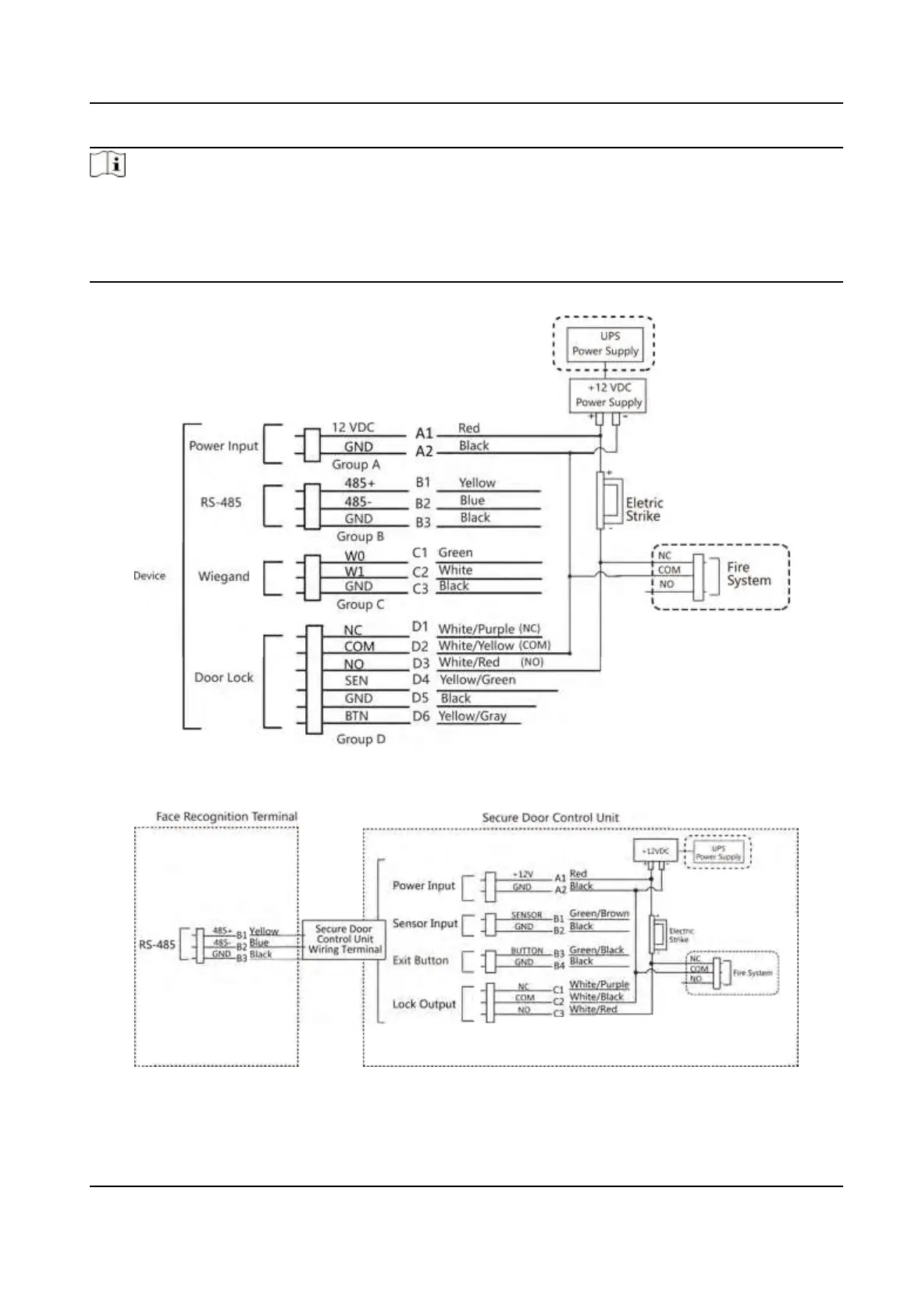

Figure 4-7 Device Wiring
Figure 4-8 Wiring Diagram
