HIKVISION DS-K2801 User Manual

Access Controller·User Manual
46

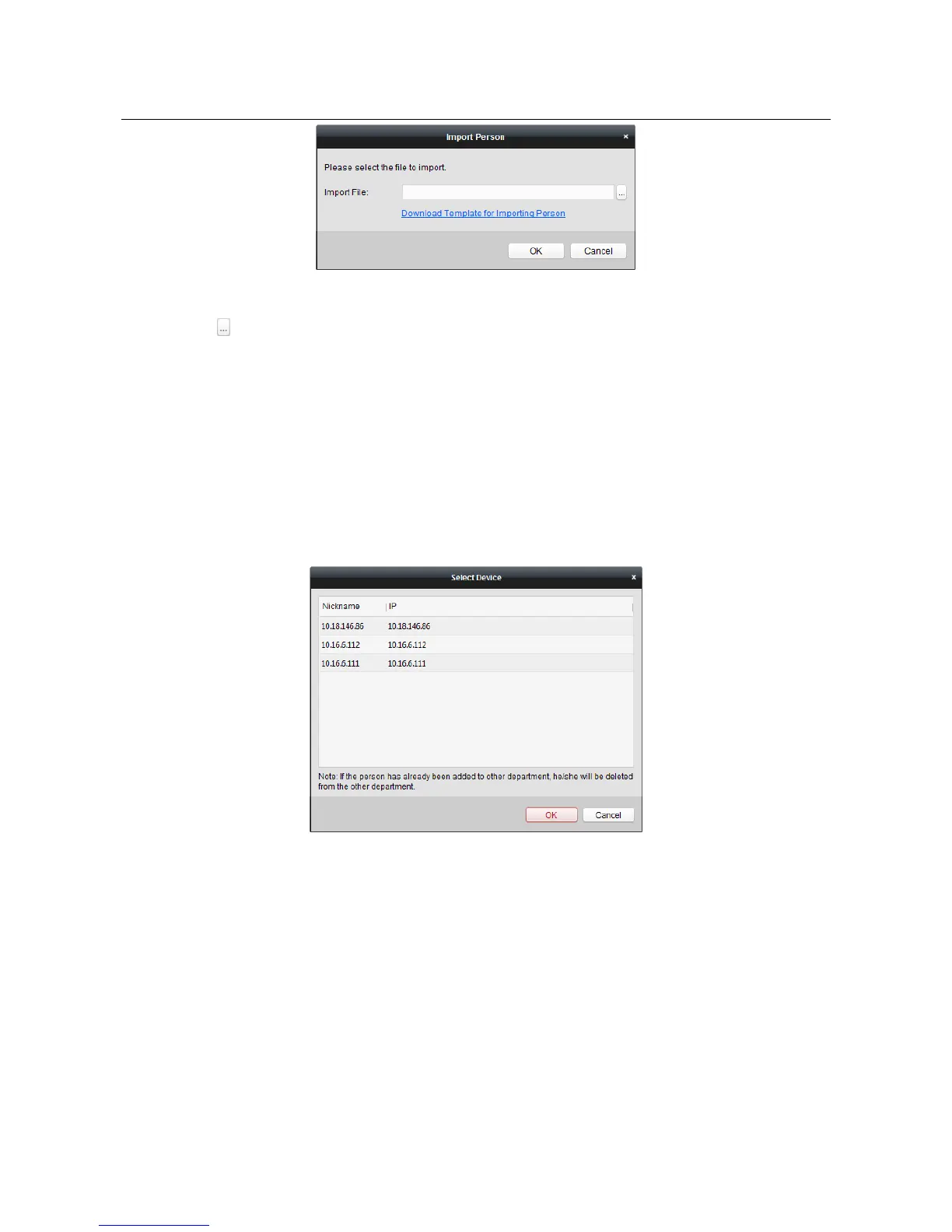

2) You can click Download Template for Importing Person to download the template first.
3) Input the person information to the downloaded template.
4) Click to select the Excel file with person information.
5) Click OK to start importing.
Getting Person Information from Access Control Device
If the added access control device has been configured with person information (including person
details, fingerprint, issued card information), you can get the person information from the device
and import to the client for further operation.
Note: This function is only supported by the device the connection mothod of which is TCP/IP
when adding the device.
Steps:
1. In the organization list on the left, click to select an organization to import the persons.
2. Click Get Person button to pop up the following dialog box.
3. The added access control device will be displayed.
4. Click to select the device and then click OK to start getting the person information from the
device.
You can also double click the device name to start getting the person information.
Notes:
 The person information, including person details, person’s fingerprint information (if
configured), and the linked card (if configured), will be imported to the selected organization.
 If the person name stored in the device is empty, the person name will be filled with the issued
card No. after importing to the client.
 The gender of the persons will be Male by default.
 Up to 10000 persons with up to 5 cards each can be imported.

HIKVISION DS-K2801 Specifications

General

Product type	Access controller
Certification	CE, FCC
Compatibility	Wiegand
Mounting type	Wall
Product color	Black
Brand compatibility	Hikvision
Operating temperature (T-T)	-20 - 65 °C
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	285 mm
Width	237 mm
Height	69 mm
