HIKVISION DS-K2801 User Manual

Access Controller·User Manual
60
3. Select the first card mode in the drop-down list for the access control point.
4. (Optional) If you select Remain Open with First Card, you should set remain open duration.
Notes:
 The Remain Open Duration should be between 0 and 1440 minutes. By default, it is 10
minutes.
 In the First Card Authorization mode, you can access the door when swiping the super
card, the duress card or input the duress code without swiping the first card.
 You can swipe the first card again to disable the first card mode.
 The first card authorization is effective only on the current day. The authorization will be
expired after 24:00 on the current day.

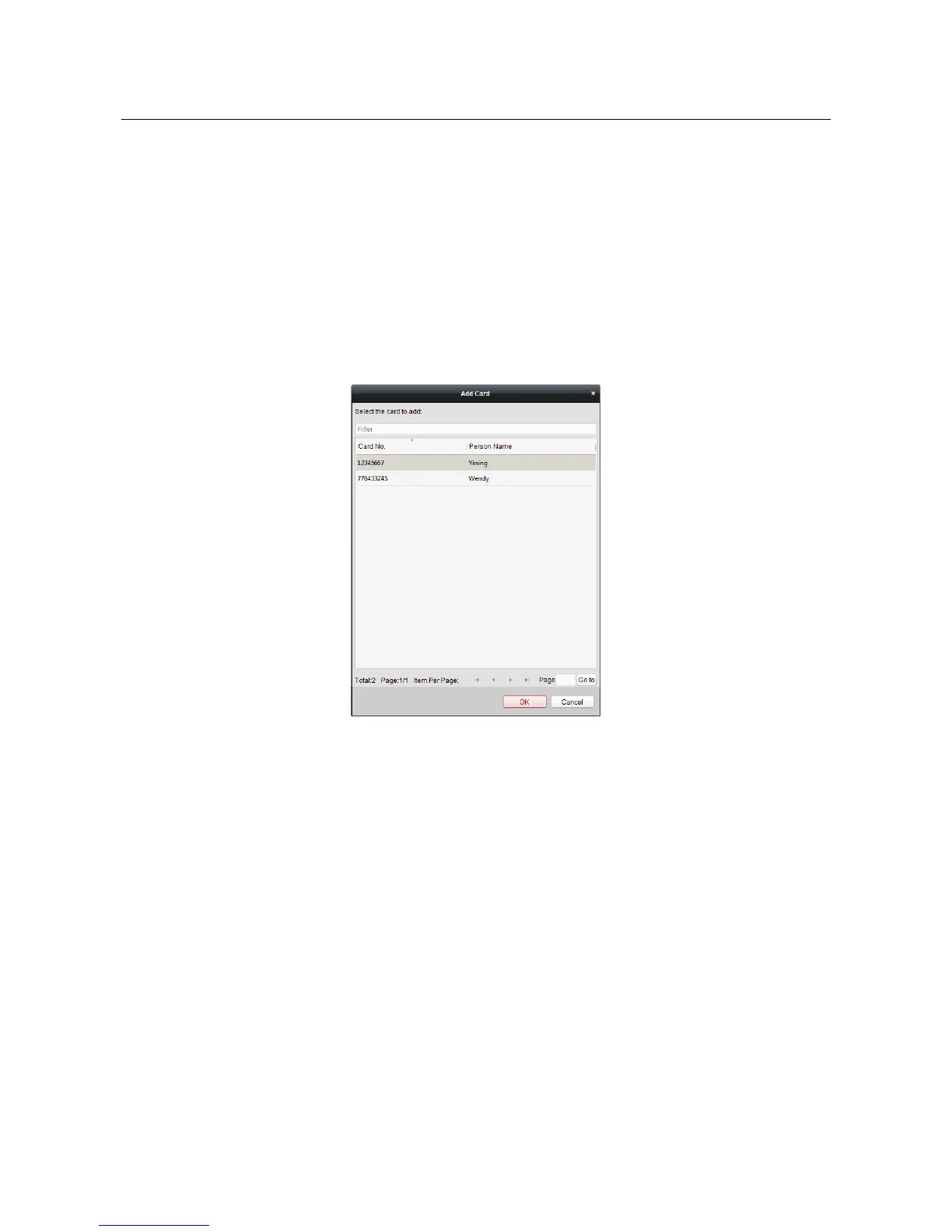

5. In the First Card list, Click Add button to pop up the following dialog box.
1) Select the cards to add as first card for the door
Note: Please set the card permission and apply the permission setting to the access
control device first. For details, refer to Chapter 7.7 Permission Configuration.
2) Click OK button to save adding the card.
6. You can click Delete button to remove the card from the first card list.
7. Click Save to save and take effect of the new settings.
7.8.4 Anti-Passing Back
Purpose:
You can set anti-passing back for card readers in the same access controller. You should swipe the
card according to the configured swiping card route. And only one person could pass the access
control point after swiping the card.
Notes:
 Either the anti-passing back or multi-door interlocking function can be configured for an access
control device at the same time.

HIKVISION DS-K2801 Specifications

General

Product type	Access controller
Certification	CE, FCC
Compatibility	Wiegand
Mounting type	Wall
Product color	Black
Brand compatibility	Hikvision
Operating temperature (T-T)	-20 - 65 °C
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	285 mm
Width	237 mm
Height	69 mm
