HIKVISION DS-K2801 User Manual

Access Controller·User Manual
61
 You should enable the anti-passing back function on the access control device first.
Setting the Path of Swiping Card (Card Reader Order)
Steps:

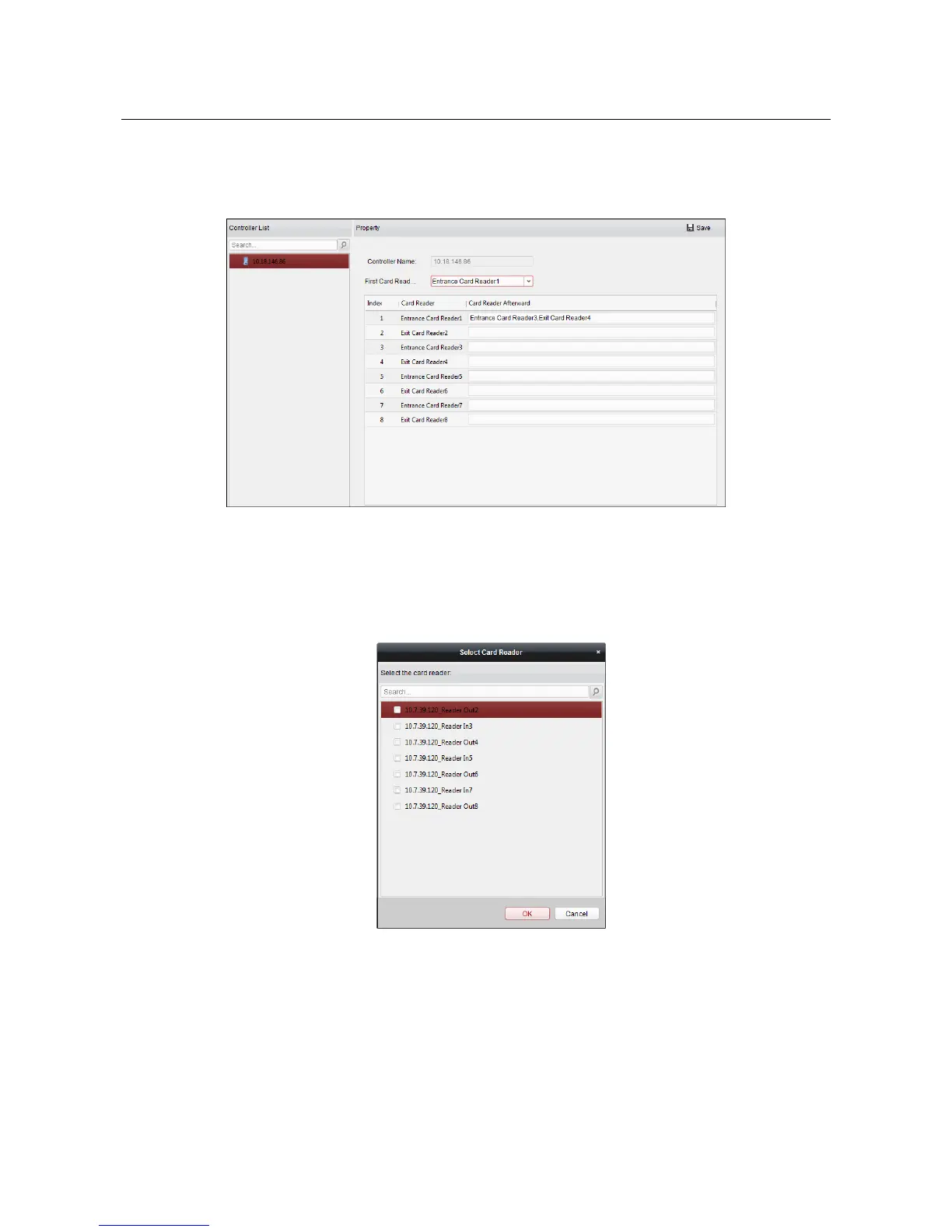

1. Click Anti-passing Back tab to enter the following interface.
2. Select an access control device from the device list on the left.
3. In the First Card Reader field, select the card reader as the beginning of the path.
4. In the list, click the text filed of Card Reader Afterward and select the linked card readers.
Example: If you select Reader In_01 as the beginning, and select Reader In_02, Reader Out_04
as the linked card readers. Then you can only get through the access control point by swiping
the card in the order as Reader In_01, Reader In_02 and Reader Out_04.
Note: Up to four afterward card readers can be added for one card reader.
5. (Optional) You can enter the Select Card Reader dialog box again to edit its afterward card
readers.
6. Click Save to save and take effect of the new settings.

HIKVISION DS-K2801 Specifications

General

Product type	Access controller
Certification	CE, FCC
Compatibility	Wiegand
Mounting type	Wall
Product color	Black
Brand compatibility	Hikvision
Operating temperature (T-T)	-20 - 65 °C
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	285 mm
Width	237 mm
Height	69 mm
