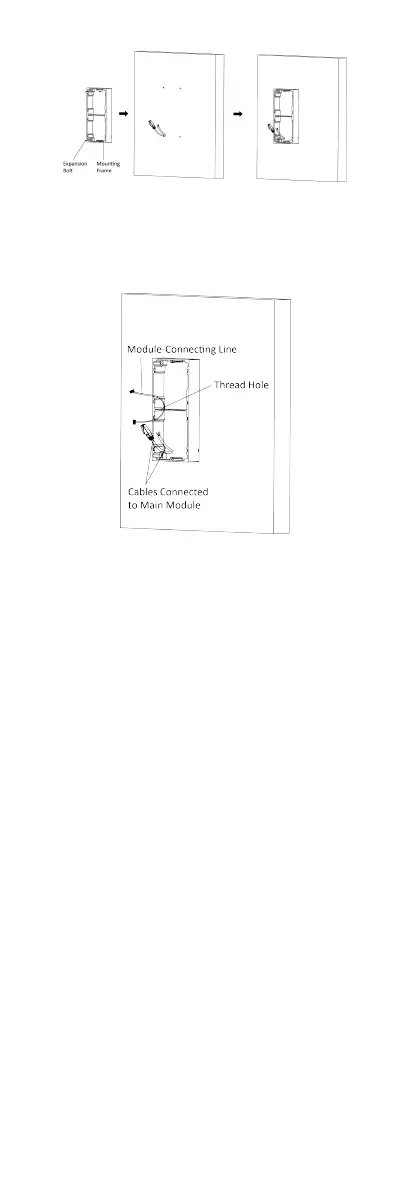

Figure 4-4 Fix the Mounng Frame
5. Thread the
module-connecng line across the thread hole of
the frame. Pass the main unit connecng lines across the
thread hole to the upper grid.
Figure 4-5 Placement of Lines
6. Connect the cables.
1) Connect the lines and module-connecng line to the
corresponding interfaces of the main unit, then place the
main unit into the upper grid.
2) Connect the other end of the
module-connecng line to the
input interface of the sub module.
3) Organize the cable with cable
e in the package. The
suggested cable connecon picture as shown below.
15
