HIKVISION DS-KD-M User Manual

Before You Start

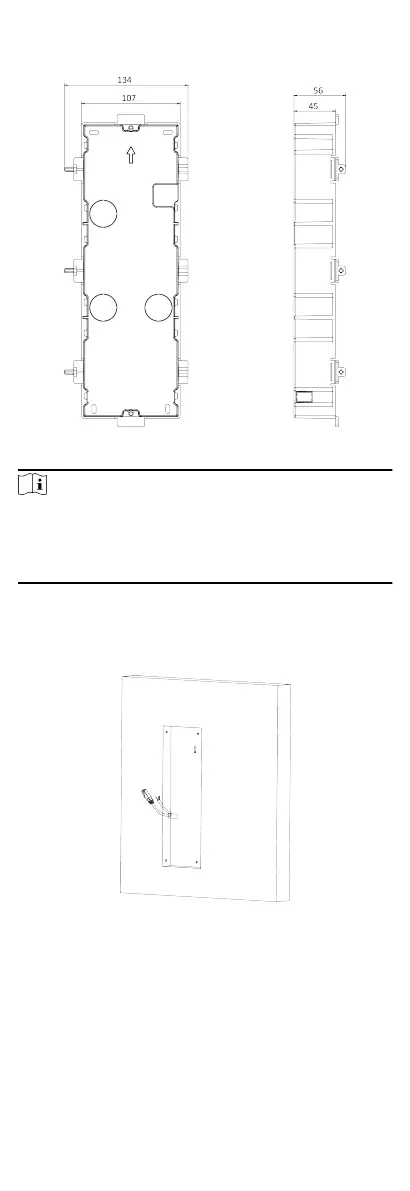

Figure 4-24 Gang Box
Note
●
The dimension of one-module gang box is: 338.8(W)×134(H)
×56(D) mm.
●
The dimensions above are for reference only. The actual size
can be slightly dierent from the theorecal dimension.
Steps
1. Cave the installaon hole, and pull the cable out.The suggested
dimension of
installaon hole is 321.8(W)×108(H)×45.5(D) mm.
The suggested length of cables le outside is 270 mm.
Figure 4-25 Cave the Installaon Hole
2. Select a cable entry and remove the plasc sheet.
3. Mark the gang box screw holes on the wall.
1) Route the cables through the gang box hole.
2) Insert the gang box into the installaon hole.
23

HIKVISION DS-KD-M Specifications

General

Product type	Card reader
Mounting type	Surface
Product color	Black
Brand compatibility	Hikvision
International Protection (IP) code	IP65
Package weight	421 g
Quantity per pack	1 pc(s)
Storage temperature (T-T)	10 - 95 °C
Operating temperature (T-T)	-40 - 55 °C
DC input voltage	12 V
Sustainability certificates	REACH, RoHS, WEEE

Weight and Dimensions

Depth	33.7 mm
Width	98.5 mm
Height	100 mm
Weight	160 g
