HIKVISION DS-KD3002-VM Quick Start Guide

Video Intercom Door Station·Quick Start Guide
23
3.3 Installation of DS-KD3002-VM
3.3.1 Gang Box for DS-KD3002-VM

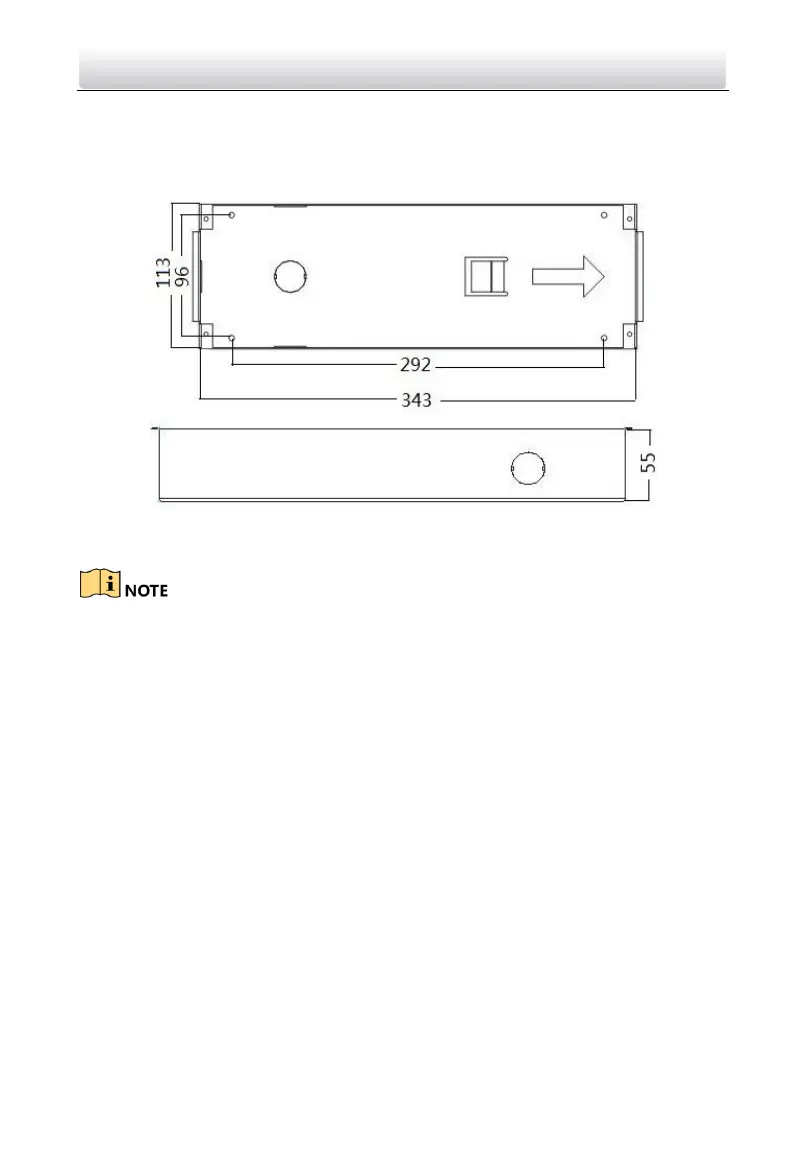

Figure 3-12 Front and Side View
 The dimension of gang box for model DS-KD3002-VM door station is: 343(length)×
113(width)×55(depth) mm.
 The dimensions above are for reference only. The actual size can be slightly different
from the theoretical dimension.
3.3.2 Wall Mounting with Gang Box of DS-KD3002-VM
Steps:
1. Chisel a hole in the wall for inserting the gang box. The size of the hole should be
larger than that of the gang box. The suggested size of hole is 343.5 (length) × 113.5
(width) × 55.5 (depth) mm.
2. Insert the gang box into the hole and fix it with 4 PA4 screws.

HIKVISION DS-KD3002-VM Specifications

General

Operating system installed	Linux
Display diagonal	3.5 \
Display resolution	480 x 320 pixels
Display technology	LCD/TFT
Video formats supported	H.264
Megapixel	1.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Supported video modes	720p
Maximum video resolution	1280 x 720 pixels
Proper use	Outdoor
Product color	Black, White
Placement supported	Vertical
Outdoor unit housing material	Aluminum
International Protection (IP) code	IP65
Indoor unit included	No
Outdoor unit included	Yes
Speakerphone	-
Certification	FCC, IC, CE, C-TICK, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit power type	DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711u

Weight and Dimensions

Depth	55 mm
Width	124 mm
Height	357 mm
