HIKVISION DS-KD8002-VM User Manual

Video Intercom Door Station·User Manual
61

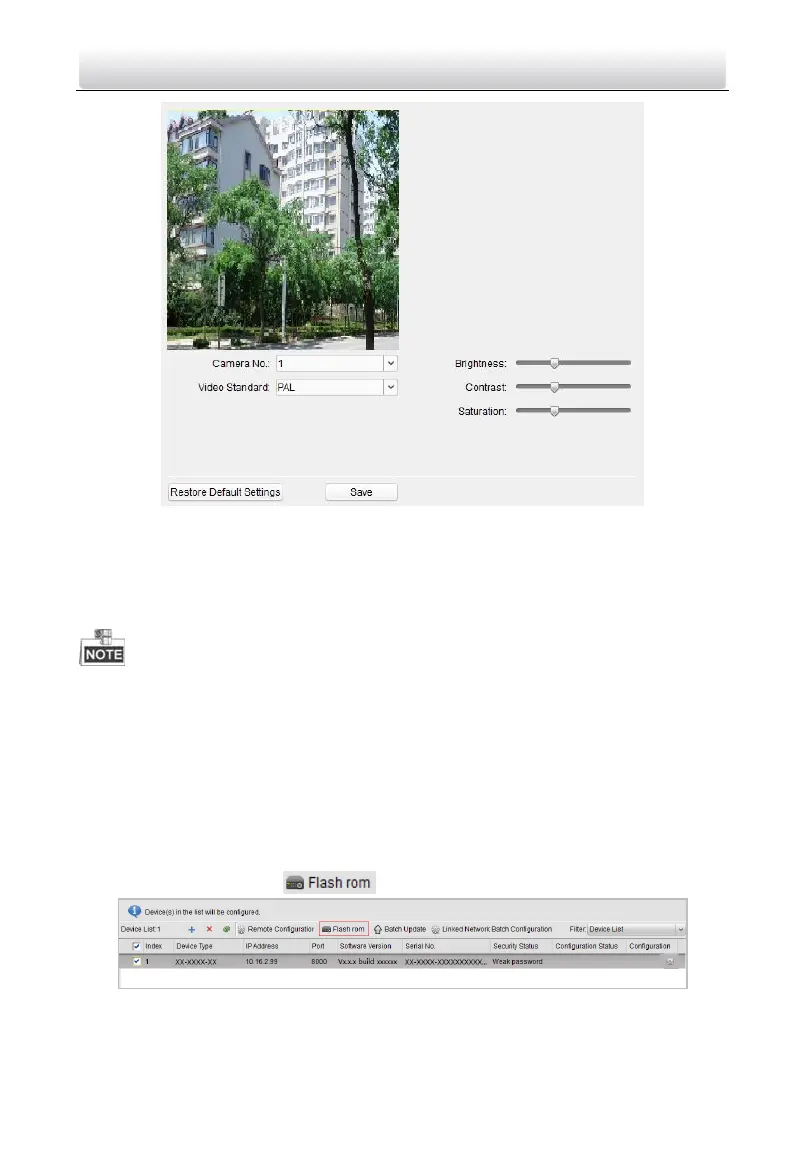

Figure 8-33 Video Display
2. Select the camera No..
3. Select the video standard (PAL and NTSC can be selected).
4. Set the brightness, contrast, and saturation of the video.
5. Click the Save button to enable the settings.
Click the Restore Default Settings button to restore all parameters excluding network
parameters to the factory settings.
8.5 Video Intercom Device Set-up Tool
Purpose:
You can assign the device to the community, activate and set the device, and configure
the network parameters and linked network parameters for the device by using the
video intercom device set-up tool.
In the device list area, click to enter the video intercom device set-up tool.
Figure 8-34 Video Device Set-up Tool

HIKVISION DS-KD8002-VM Specifications

General

Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	14 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Operating system installed	Linux
Proper use	Outdoor
Product color	Aluminium, Black
Outdoor unit housing material	Aluminum
International Protection (IP) code	IP65
Display diagonal	3.5 \
Display resolution	480 x 320 pixels
Display technology	LCD/TFT
Display aspect ratio	3:2
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Operating relative humidity (H-H)	10 - 90 %
Door station operating temperature (T-T)	-40 - 70 °C
Outdoor unit power type	AC/DC
Power consumption (typical)	15 W
Sensor type	CMOS
Maximum frame rate	30 fps
Maximum video resolution	1280 x 720 pixels

Weight and Dimensions

Depth	61 mm
Width	145 mm
Height	418 mm
Door station dimensions (WxDxH)	145 x 61 x 418 mm
