HIKVISION DS-KD8002-VM User Manual

Video Intercom Door Station·User Manual
88
Modifying Device Information
1. Select an added device.
2. Click Modify to enter the device modifying interface.

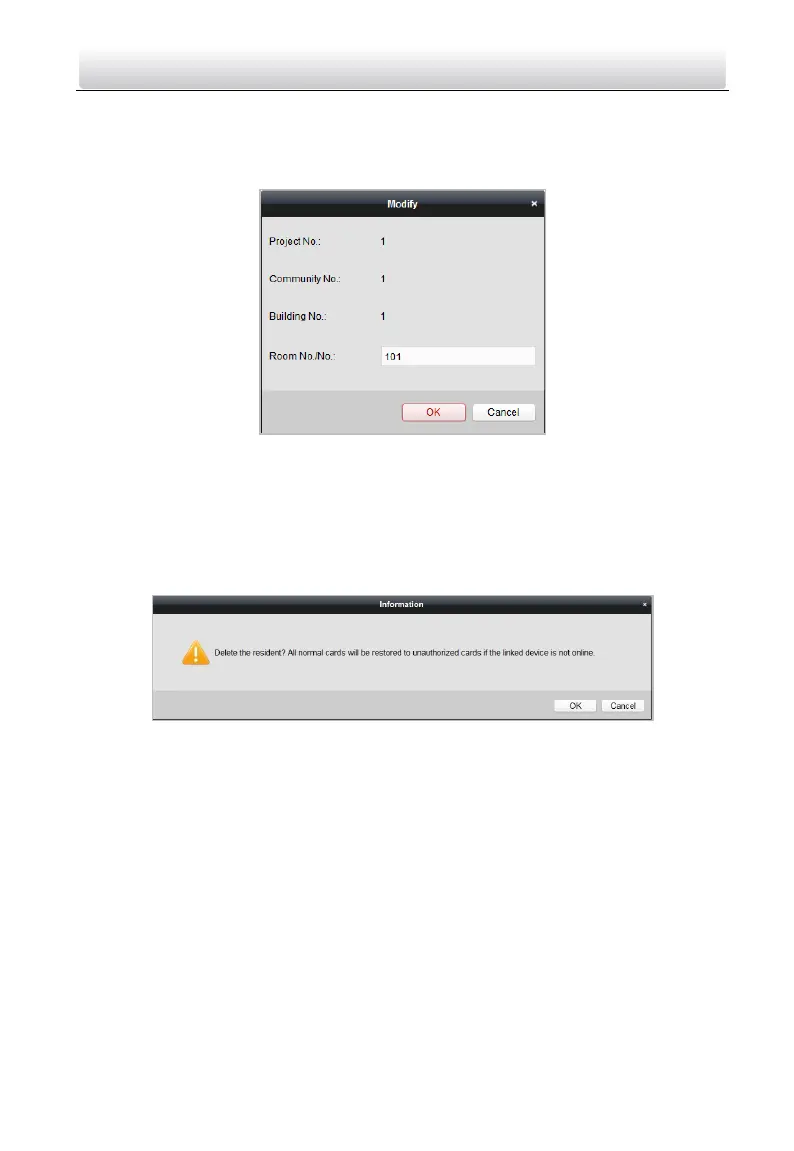

Figure 9-24 Modifying Device Information
3. Click OK to complete the device modifying operation.
Deleting Device
1. Select an added device.
2. Click Remove to pop up a dialog box.
Figure 9-25 Information
3. Click OK to complete the group deleting operation.
9.6.2 Video Intercom
Receiving Call from Door Station
Purpose:
When the door station has been added to the client software, you can call the client via
door station.
Before you start:
 Make sure the door station has been added to the client software.

HIKVISION DS-KD8002-VM Specifications

General

Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	14 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Operating system installed	Linux
Proper use	Outdoor
Product color	Aluminium, Black
Outdoor unit housing material	Aluminum
International Protection (IP) code	IP65
Display diagonal	3.5 \
Display resolution	480 x 320 pixels
Display technology	LCD/TFT
Display aspect ratio	3:2
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Operating relative humidity (H-H)	10 - 90 %
Door station operating temperature (T-T)	-40 - 70 °C
Outdoor unit power type	AC/DC
Power consumption (typical)	15 W
Sensor type	CMOS
Maximum frame rate	30 fps
Maximum video resolution	1280 x 720 pixels

Weight and Dimensions

Depth	61 mm
Width	145 mm
Height	418 mm
Door station dimensions (WxDxH)	145 x 61 x 418 mm
