HIKVISION DS-KH6310-W

Video Intercom Indoor Station·User Manual
14
Name
No.
Interface
Description
B2
AIN3
Zone Detector Input Terminal 3
B3
AIN2
Zone Detector Input Terminal 2
B4
AIN1
Zone Detector Input Terminal 1
B5
RS485+
Reserved
4.4 Terminals and Interfaces of DS-KH6310-W(L)/
DS-KH6210(L)

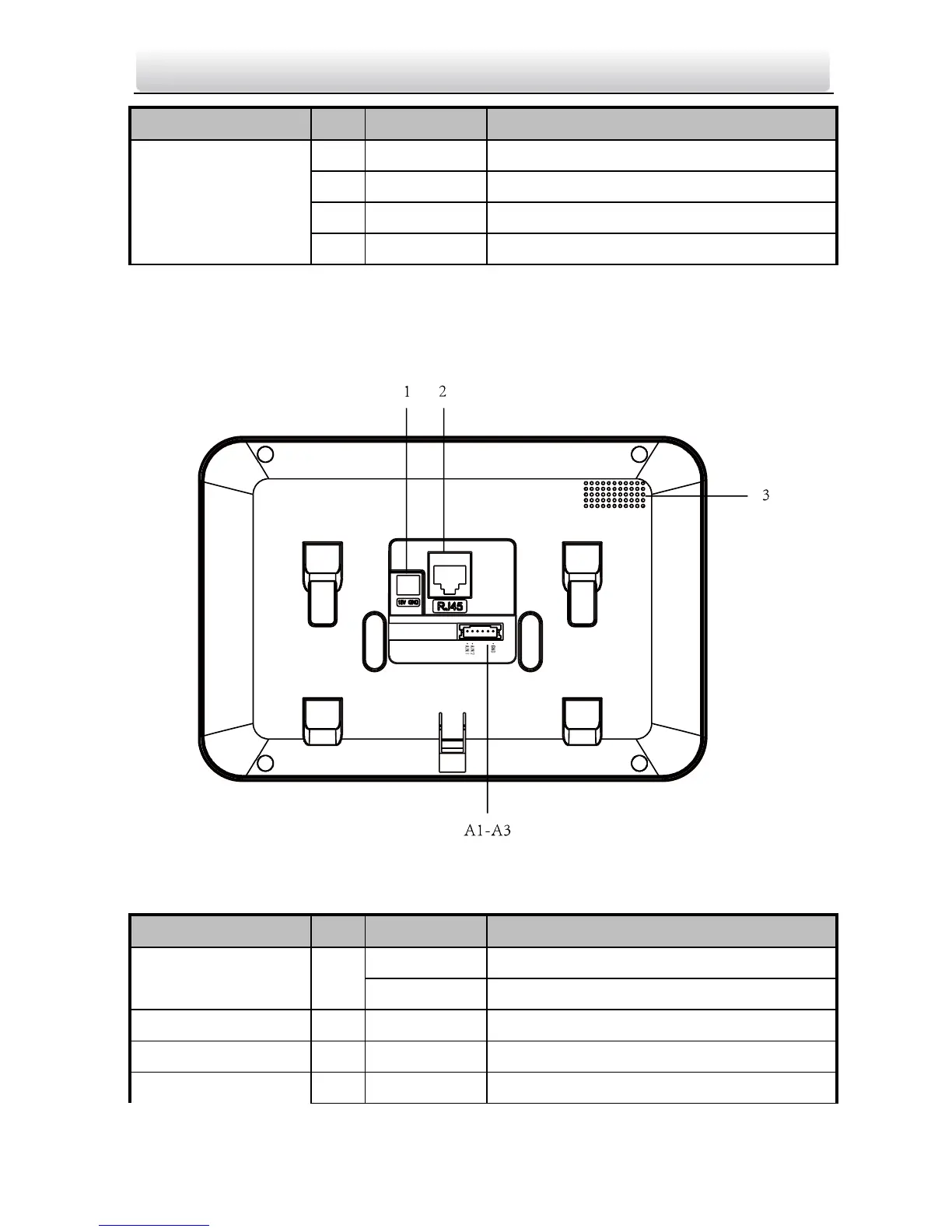

Figure 4-4 Rear Panel of DS-KH6310-W(L)/DS-KH6210(L)
Table 4-4 Descriptions of Terminals and Interfaces
Name
No.
Interface
Description
Power Supply
1
+12V
DC 12V Power Supply + Input
GND
DC 12V GND - Input
Network Interface
2
LAN
Network Interface (Support Private POE)
Loudspeaker
3
Loudspeaker
Ports and Interfaces
A1
AIN1
Zone Detector Input Terminal 1
