Video Intercom Indoor Station·User Manual
34

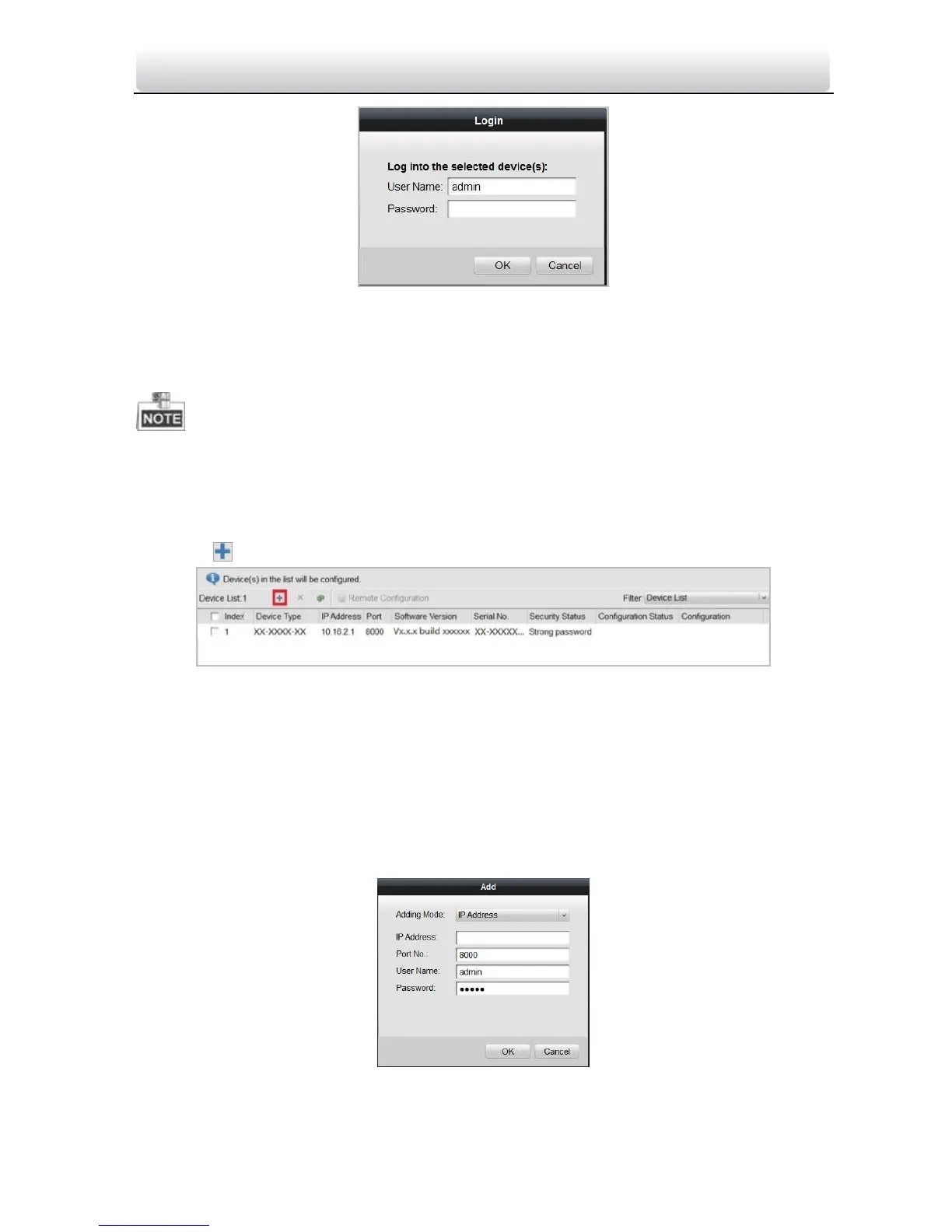

Figure 8-6 Login Dialog Box
4. Enter the user name and password.
5. Click the OK button to save the settings.
Only the devices that are successfully logged in will be added to the device list for
configuration.
8.3.2 Adding by IP Address, IP Segment or Port No.
Click the button to pop up the adding devices dialog box.
Figure 8-7 Adding Button
 Adding by IP Address
Purpose:
You can add the device by entering IP address.
Steps:
1. Select IP Address in the adding mode drop-down list.
2. Enter the IP address, and set the port No., user name and password of the device.
Figure 8-8 Adding by IP Address

HIKVISION DS-KH6310-W Specifications

General

Color	Yes
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	4 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Display resolution	800 x 480 pixels
Display technology	LCD/TFT
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Proper use	Indoor
Control type	Buttons, Touch
Product color	White
Operating system installed	Linux
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
