HIKVISION DS-KH6310-W User Manual

Video Intercom Indoor Station·User Manual
67
 You must create a password to activate the indoor station for your first time usage
and when it is not activated.
 Only after activating the indoor station, you can operation it locally and remotely.
 Here the activation interface of models DS-KH8301-WT/DS-KH8300-T indoor stations
is taken as example.
10.2 User Interface Description
10.2.1 User Interface of Indoor Station

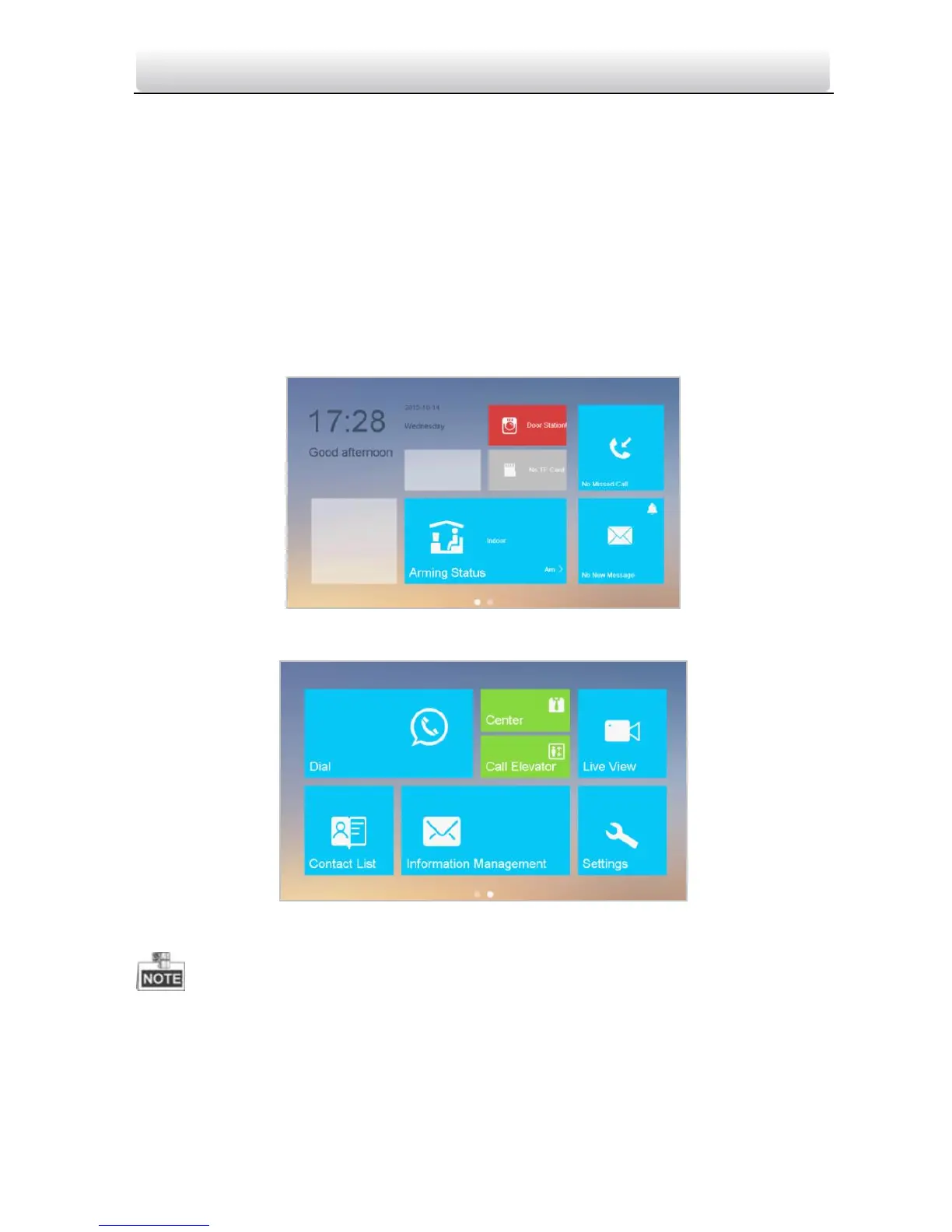

Figure 9-2 User Interface of Indoor Station (Page 1)
Figure 9-3 User Interface of Indoor Station (Page 2)
 Slide left and right to realize the switch between two interface pages (except for
DS-KH6210(L)).
 Here the user interface of DS-KH8501-WT is taken as as example.

HIKVISION DS-KH6310-W Specifications

General

Color	Yes
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	4 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Display resolution	800 x 480 pixels
Display technology	LCD/TFT
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Proper use	Indoor
Control type	Buttons, Touch
Product color	White
Operating system installed	Linux
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
