HIKVISION DS-KH6310-W User Manual

Video Intercom Indoor Station·User Manual
59

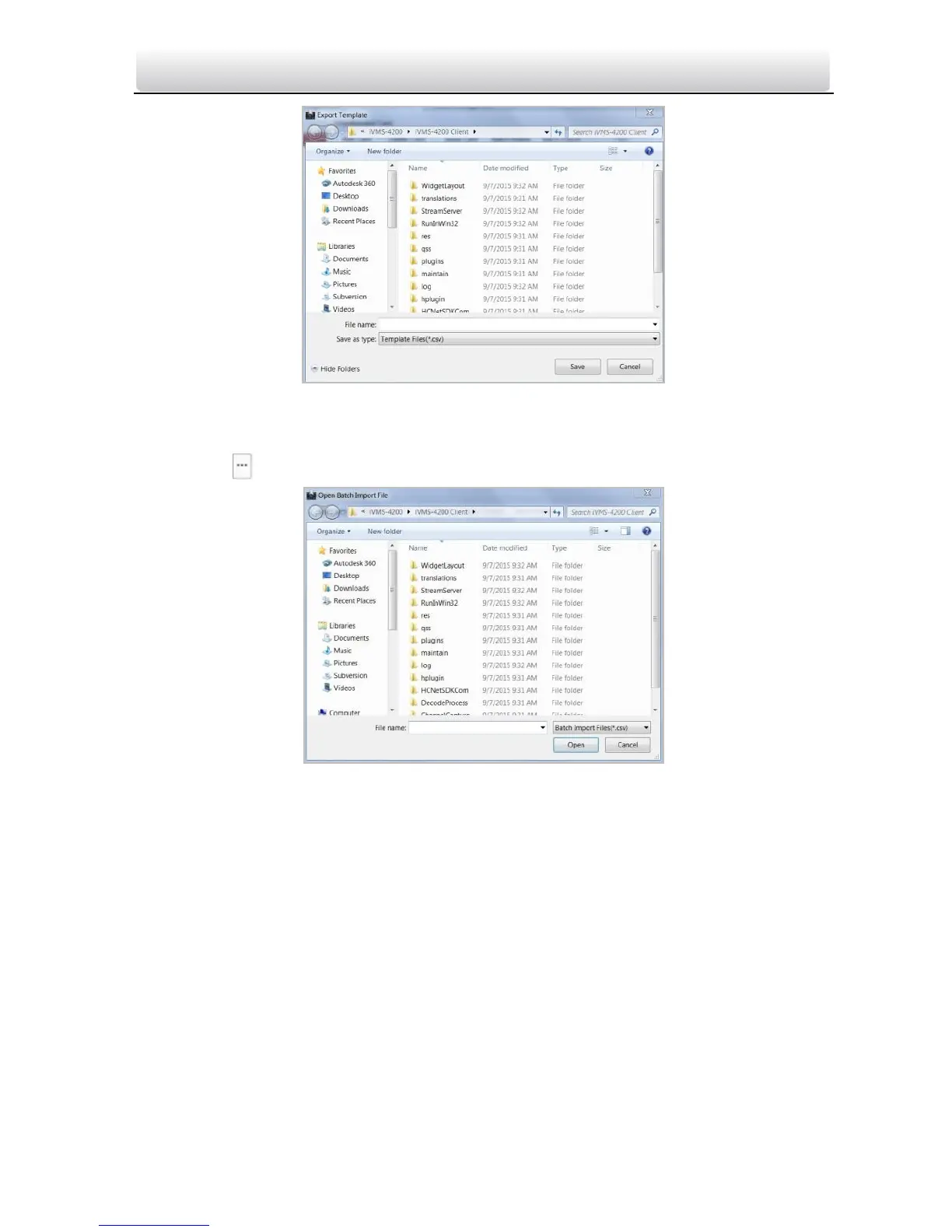

Figure 9-10 Template File Exporting Interface
3. Fill in the template of the batch import file and click the Save button to save it.
4. Click the button to select the batch import file.
Figure 9-11 Batch Import File Opening Interface
5. Click the Open button.
6. Click the OK button to start importing the batch import file.
Export Unauthorized Cards in Batch
1. Click the Batch Export button after adding unauthorized cards.

HIKVISION DS-KH6310-W Specifications

General

Color	Yes
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	4 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Display resolution	800 x 480 pixels
Display technology	LCD/TFT
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Proper use	Indoor
Control type	Buttons, Touch
Product color	White
Operating system installed	Linux
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
