Video Intercom Indoor Station·User Manual
44
 For indoor station, maximum ring duration is the maximum duration of indoor station
when it is called without being received. The range of maximum ring duration varies
from 30s~60s.
 For indoor station, maximum live view time is the maximum time of playing live view
of the indoor station. The range of maximum live view time varies from 10s~60s.
 For indoor station, call forwarding time varies from 0s ~ 20s.
Password
1. Click the Password button to enter password changing interface.

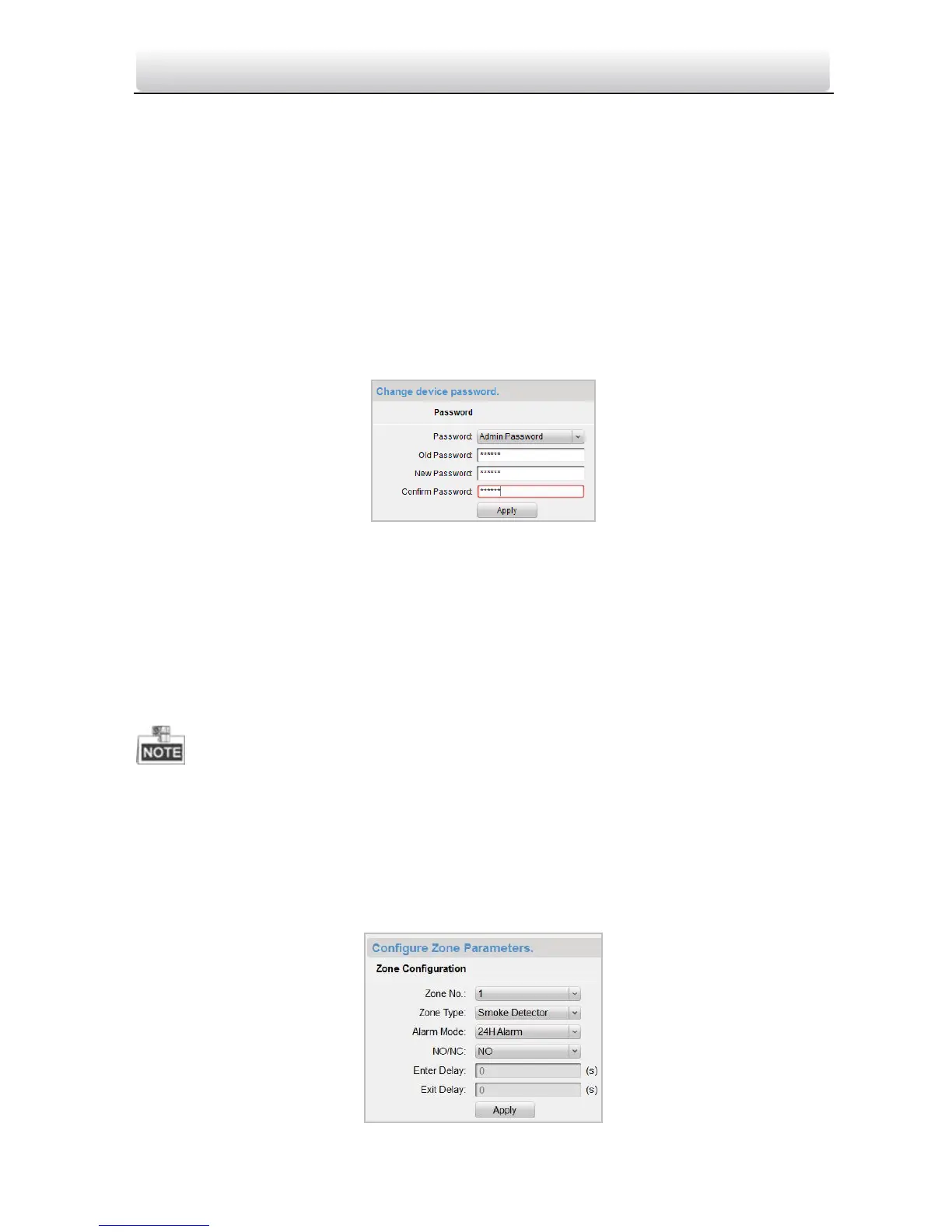

Figure 8-31 Password Changing Interface
2. Select the admin password, arm/disarm password, unlocking password, or duress
code from the drop-down list menu.
3. Enter the old password.
4. Set a new password.
5. Confirm the new password.
6. Click the Apply button to enable the password changing settings.
For indoor extension, only admin password and arm/disarm password need to be
configured.
Zone
1. Click the Zone button to enter zone settings interface.

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
