Video Intercom Indoor Station·User Manual
46
 Indoor extension does not support the IP Camera Information settings.
 The DS-KH6210(L) does not support the IP Camera Information settings.
Steps:
1. Click the IP Camera Information button to enter IP camera information interface.
Adding Network IP Camera

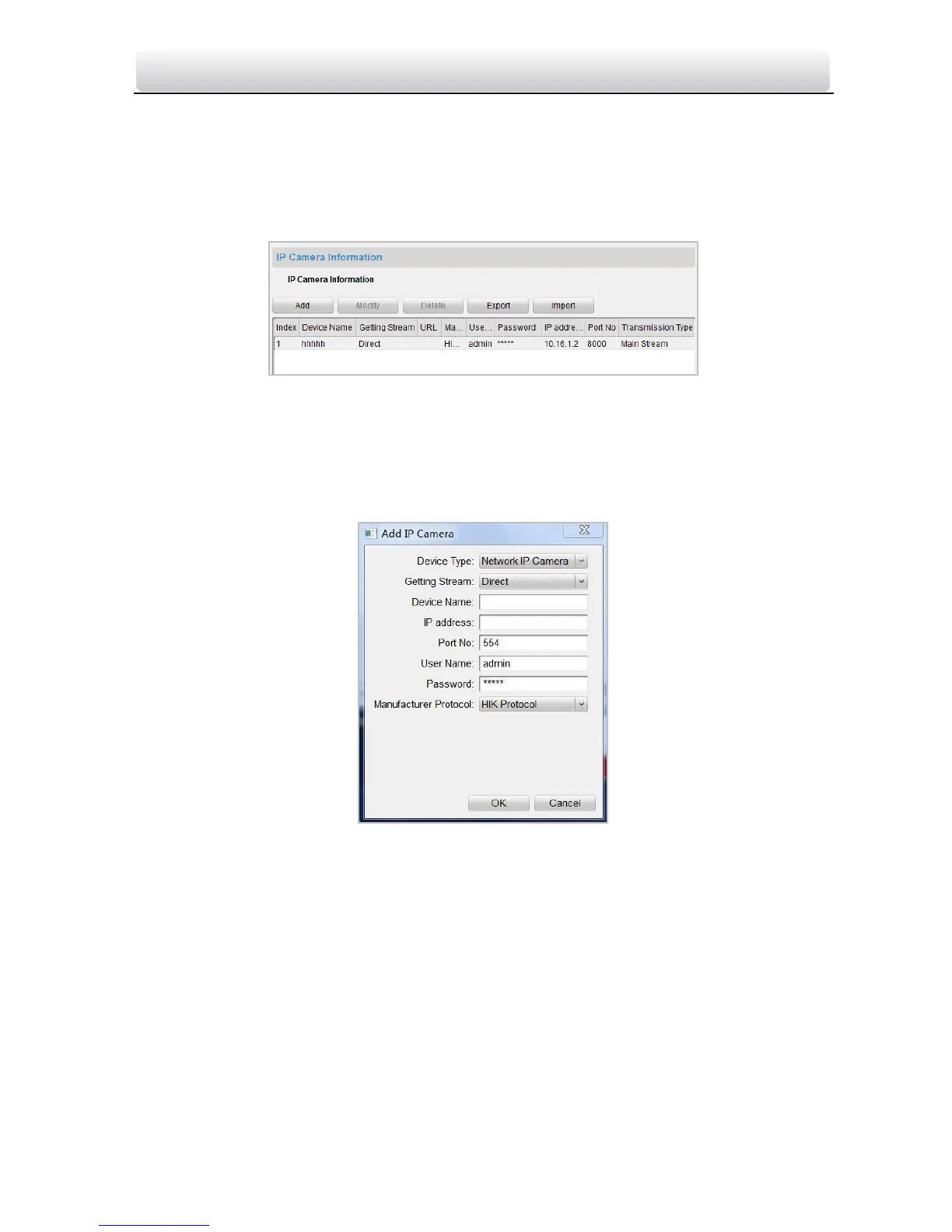

Figure 8-33 IP Camera Information Interface
1) Click the Add button on the IP camera information interface to pop up the
adding IP camera dialogue box.
2) Select Network IP Camera from the drop-down list menu of the device type.
3) Select Direct from the drop-down list menu of getting stream.
Figure 8-34 IP Camera Adding by Direct Stream
• Set a device name.
• Enter the IP address, port No., user name, and password.
4) Select URL from the drop-down list menu of getting stream.

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
