 When the IP camera added successfully, you can get the live view of main door station
on the live view interface.
 The indoor station can add 8 doorphones at most, and add 16 cameras and
DVR/DVS/NVR channels in total.
 The added IP camera, DVR/DVS/NVR, and doorphone can be edited, deleted, and
cleared.
Adding Device (Indoor Extension)
Indoor extension can only connect to the indoor station.
Steps:
1. Press the Settings tab on the touch screen.
2. Press the Configuration tab and enter the admin password (configuration password).
3. Press the Device tab to enter the device management interface.
4. Press the Indoor Station tab to pop up the device information dialogue box.

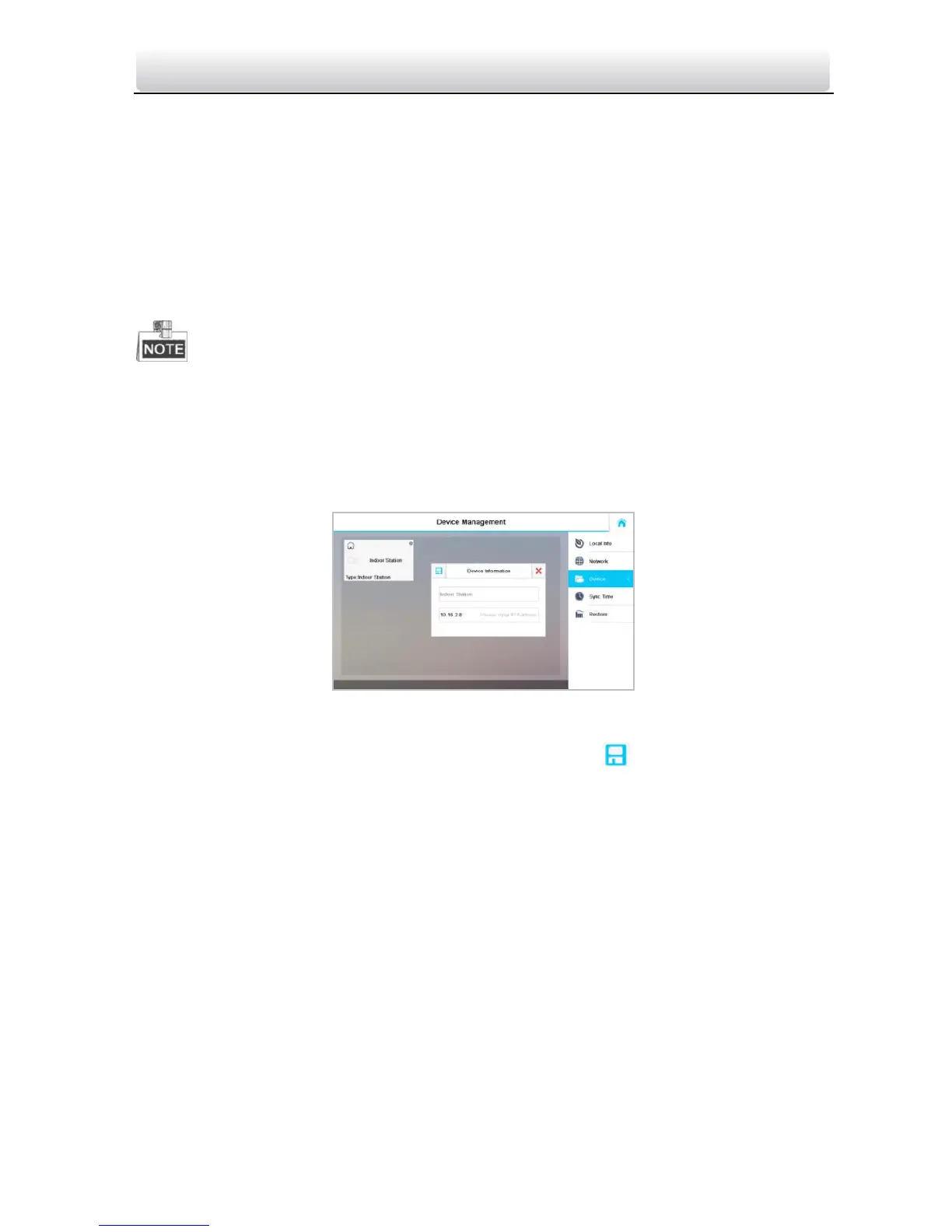

Figure 9-25 Indoor Station Adding Interface (Indoor Extension)
5. Enter the IP address of the indoor station, and press the tab to save the settings.
SCP (Security Control Panel)
Purpose:
The indoor station supports connecting to the security control panel (SCP). Alarm
messages from indoor stations can be automatically uploaded to the center once the
indoor station connects to the security control panel.
Steps:
1. Press the Settings tab on the touch screen.
2. Press the Configuration tab and enter the admin password (configuration password).
3. Press the Device tab to enter the device management interface.
4. Press the SCP tab to pop up the SCP adding dialogue box.

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
