HIKVISION DS-KH8301-WT User Manual

Video Intercom Indoor Station·User Manual
84

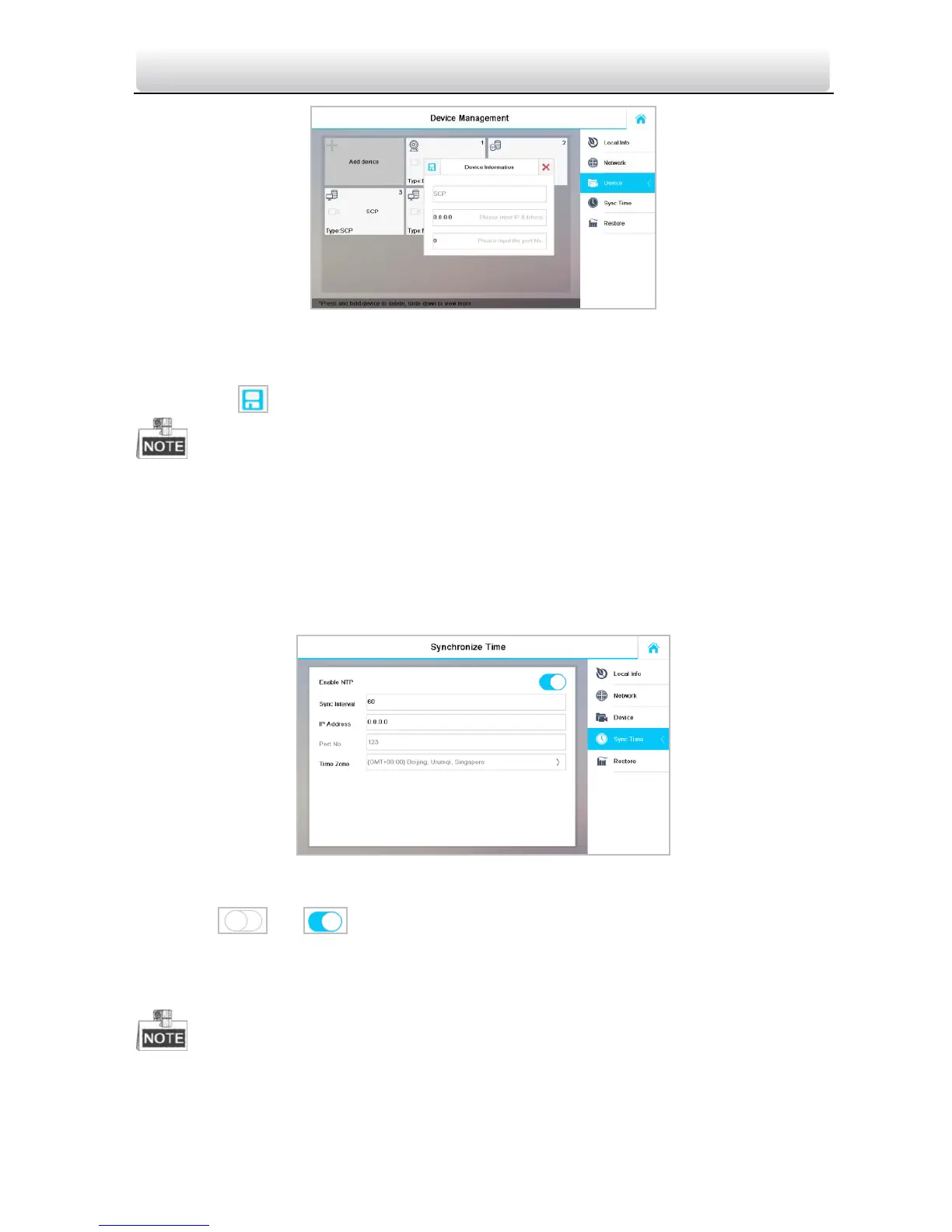

Figure 9-26 SCP Adding Interface
5. Enter the IP address and port No. of the security control panel.
6. Press the tab on the upper left corner of the dialogue box.
Indoor extension does not support connecting to the security control panel.
Synchronizing Time
Steps:
1. Press the Settings tab on the touch screen.
2. Press the Configuration tab and enter the admin password (configuration password).
3. Press the Sycn Time tab to enter the time synchronizing interface.
Figure 9-27 Time Synchronizing Interface
4. Switch to to enable NTP.
5. Set the synchronizing interval.
6. Enter the IP address of NTP server, and Port No.
7. Select the time zone.
 The default unit of synchronizing interval is minute.
 The default port No. is 123.

HIKVISION DS-KH8301-WT Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	LCD/TFT
Proper use	Indoor
Control type	Touch
Product color	White
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit included	No
Operating system installed	Linux
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Megapixel	0.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
