HIKVISION DS-KV6113-PE1 User Manual

Video Intercom Villa Door Station User Manual
35

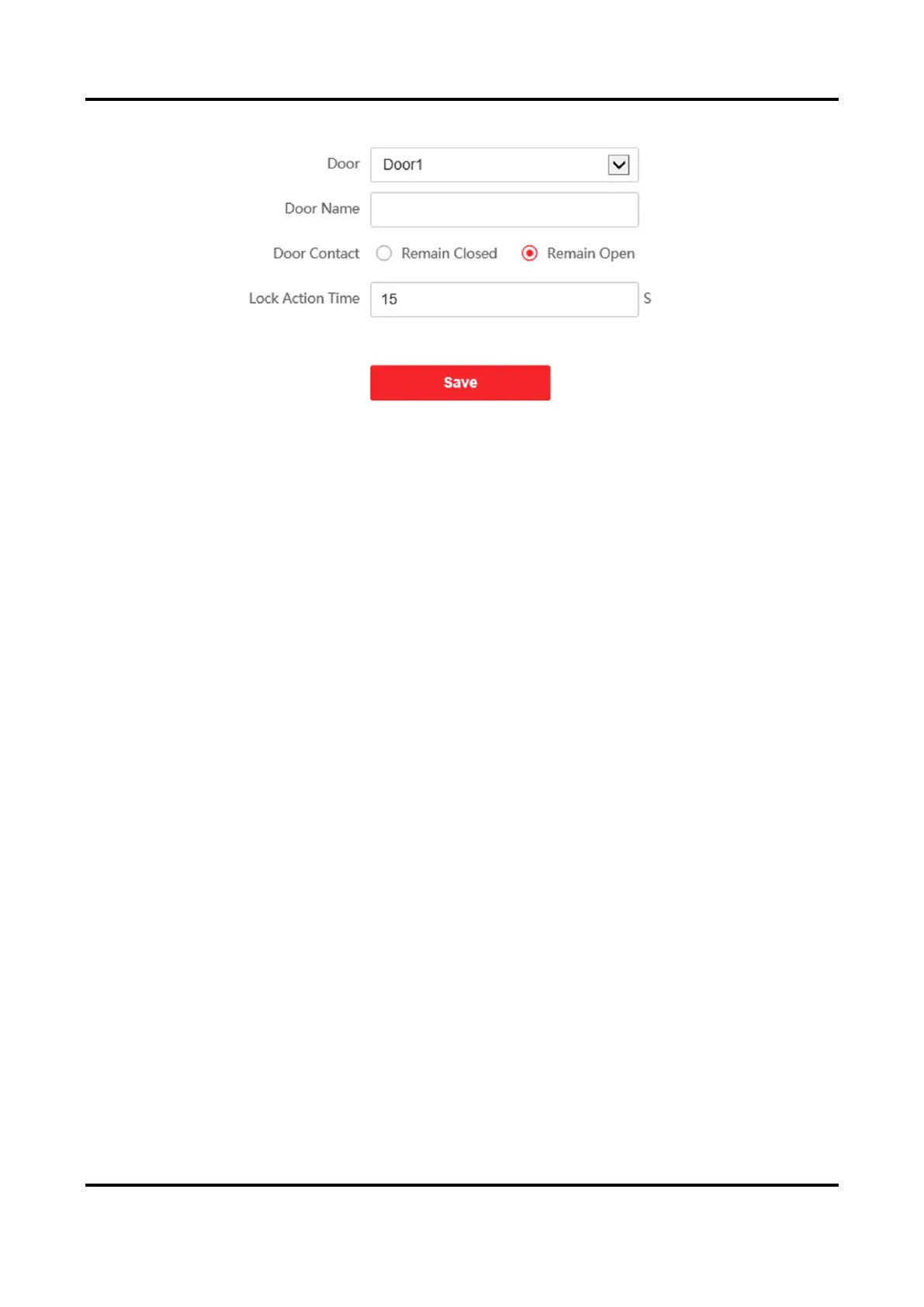

Figure 5-17 Door Parameters
2. Select the door and edit the door name.
3. Set door contact status.
4. Set lock action time.
5. Click Save to enable the settings.
Card Security
Go to Access Control → Card Security to enter the settings page.
Slide to enable card encryption parameters and CPU card reading content. Click Save to enable the
settings.
Elevator Control
Before You Start
● Make sure your door station is in the mode of main door station. Only the main door station
support elevator control function.
● Make sure your door station has been connected to the elevator controller via RS-485 wire if
you want to use RS-485 interface.
Steps
1. Click Access Control → Elevator Control to enter the corresponding configuration page.

HIKVISION DS-KV6113-PE1 Specifications

General

Color	-
Wall mountable	Yes
Connectivity technology	Wired
Megapixel	2 MP
Supported video modes	720p, 1080p
Viewing angle, vertical	75 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	129 °
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Product color	Black, Grey
International Protection (IP) code	IP65
LED type	IR
Indoor unit included	No
Outdoor unit power type	DC
Power consumption (typical)	10 W
Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	- \
Operating system installed	Embedded LINUX

Weight and Dimensions

Depth	65 mm
Width	138 mm
Height	27 mm
