HIKVISION DS-KV6113-PE1 User Manual

Video Intercom Villa Door Station User Manual
36

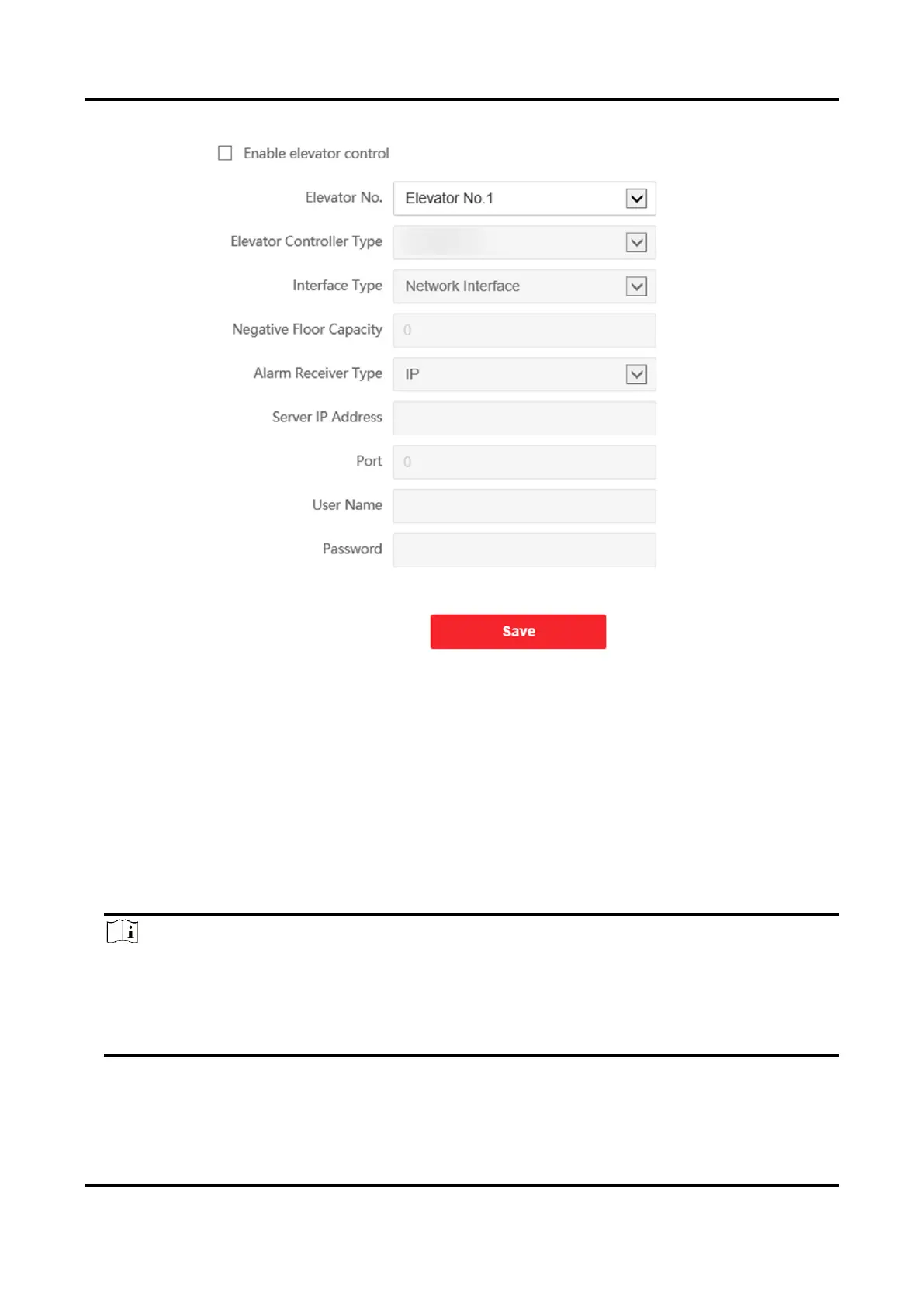

Figure 5-18 Elevator Control
2. Check to enable elevator control function.
3. Select an Elevator No., and select an elevator controller type for the elevator.
4. Set the Negative Floor.
5. Select the Interface Type as RS-485 or Network Interface. And enable the elevator control.
– If you select RS-485, make sure you have connected the door station to the elevator
controller with RS-485 wire.
– If you select Network interface, enter the elevator controller's IP address, port No., user
name, and password.
6. Click Save to enable the settings.
Note
● Up to 4 elevator controllers can be connected to one door station.
● Up to 10 negative floors can be added.
● Make sure the interface types of elevator controllers, which are connected to the same door
station are consistent.

HIKVISION DS-KV6113-PE1 Specifications

General

Color	-
Wall mountable	Yes
Connectivity technology	Wired
Megapixel	2 MP
Supported video modes	720p, 1080p
Viewing angle, vertical	75 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	129 °
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Product color	Black, Grey
International Protection (IP) code	IP65
LED type	IR
Indoor unit included	No
Outdoor unit power type	DC
Power consumption (typical)	10 W
Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	- \
Operating system installed	Embedded LINUX

Weight and Dimensions

Depth	65 mm
Width	138 mm
Height	27 mm
