HIKVISION DS-KV6113 Series User Manual

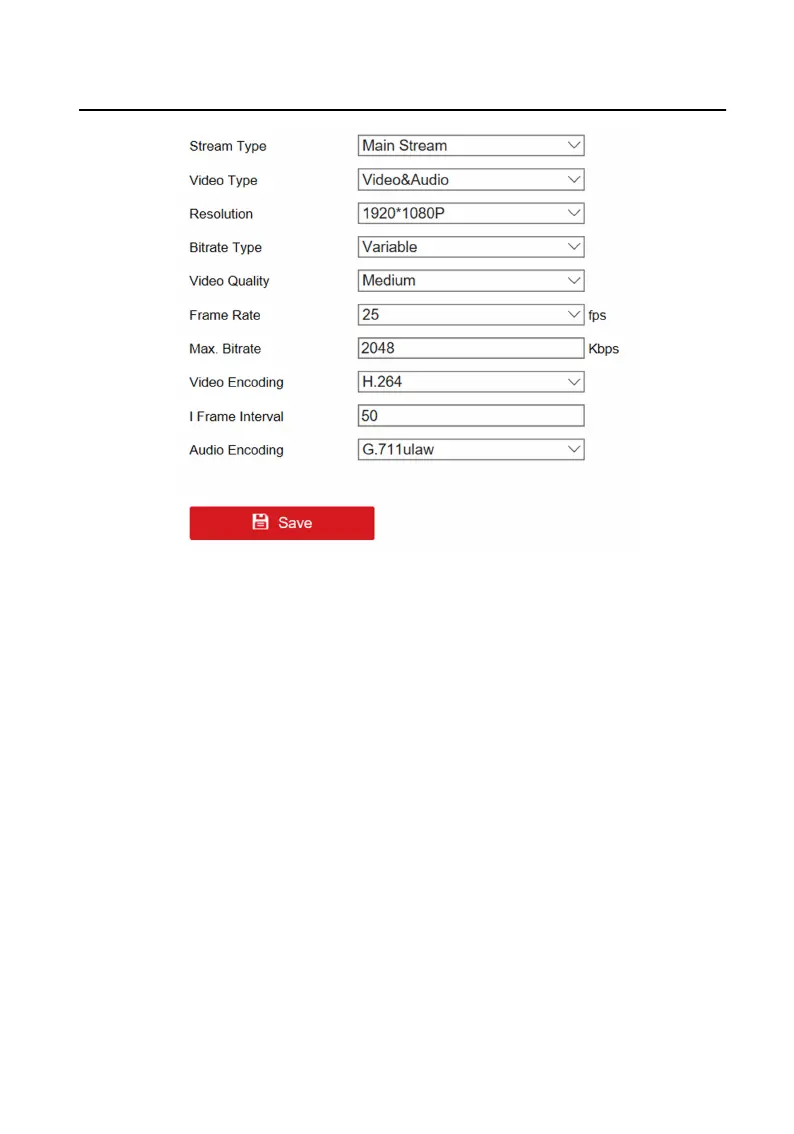

Figure 5-10 Video Parameters
2.
Select the Stream Type.
3.
Congure the video parameters.
Video Type
Select the stream type to video stream, or video & audio composite stream.
The audio signal will be recorded only when the Video Type is Video &
Audio.
Resoluon
Select the resoluon of the video output.
Bitrate Type
Select the bitrate type to constant or variable.
Video Quality
When bitrate type is selected as Variable, 6 levels of video quality are
selectable.
Frame Rate
Set the frame rate. The frame rate is to describe the frequency at which the
video stream is updated and it is measured by frames per second (fps). A
Video Intercom Villa Door
Staon User Manual
25

HIKVISION DS-KV6113 Series Specifications

General

Audio Bit Rate	64 Kbps
Ingress Protection	IP65
Operation System	Embedded Linux
Camera	2 MP
Resolution	1920 × 1080
Frame Rate	25/30 fps
Video Compression	H.264
Audio Input	Built-in microphone
Audio Output	Built-in speaker
Network Protocol	TCP/IP, RTSP
Interface	1 RJ45 10/100 Mbps Self-Adaptive Ethernet Interface
Relay Output	1
RS-485	1
Power Supply	DC 12V
Operating Humidity	10% to 90%
Power Consumption	≤12 W
