4.2.2 Door Magnetic Wiring

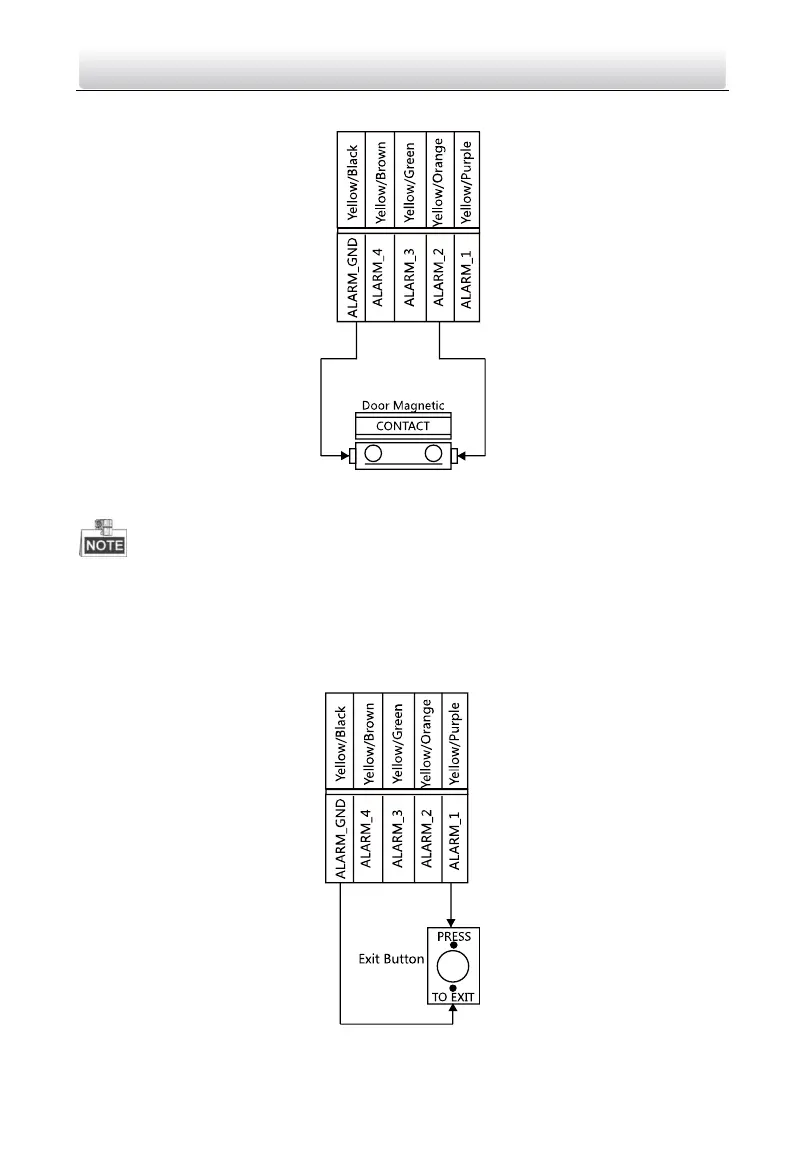

Figure 4-3 Door Magnetic Wiring
To connect door magnetic, it is required to set the input of one alarm in terminal
(ALARM_1, ALARM_2, ALARM_3, or ALARM_4) to be door magnetic with Batch
Configuration Tool or iVMS-4200 client software.
4.2.3 Exit Button Wiring
Figure 4-4 Exit Button Wiring
