HIKVISION DS-KV8102-IP User Manual

Video Intercom Door Station·User Manual
61

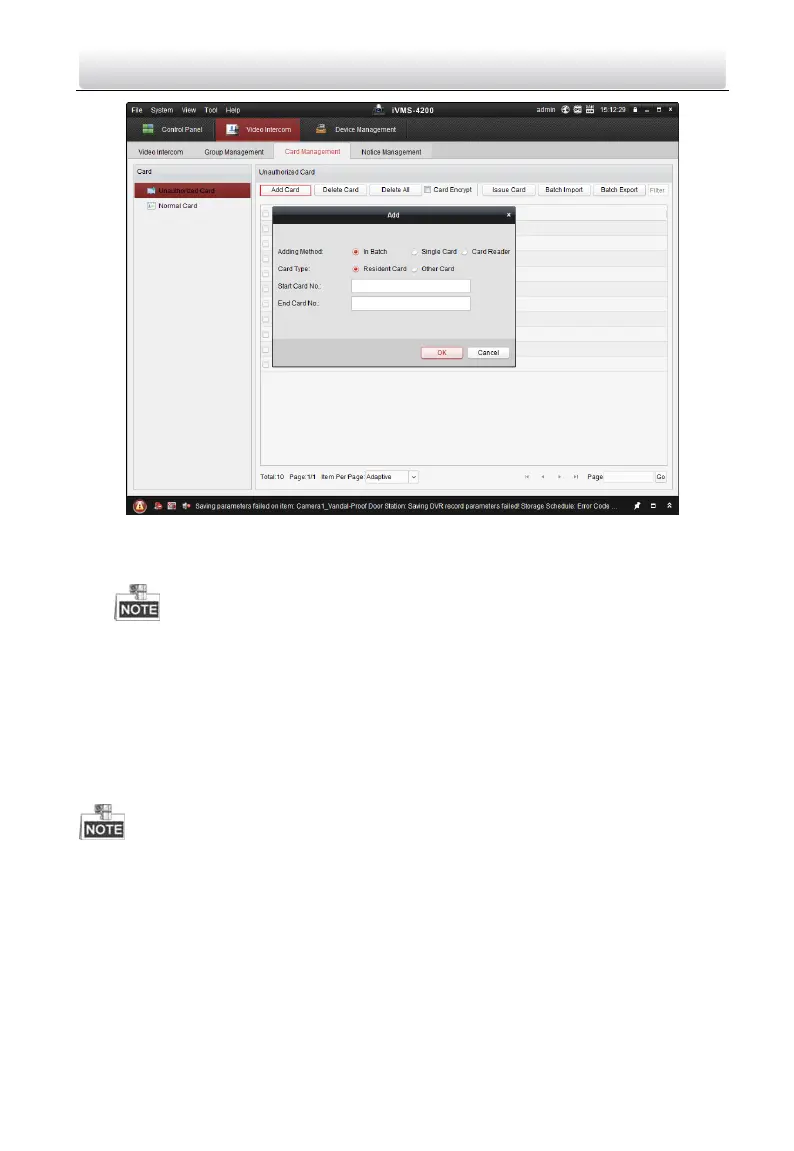

Figure 8-23 Adding Cards in Batch
2. Select card adding mode and card type.
Two types of card are available. Resident Card is used by residents living in the
community, and Other Card is used by visitors (guest, serviceman, etc.) in the
community.
 If you add card in batch, please set the start card No. and the end card No..
 If you add card singly, please enter the card No..
 If you add card via card reader, please swipe the card in the card reader, and the
corresponding card No. will be shown automatically in the Card No. textbox.
3. Click OK to accomplish carding adding operation.
 Click Delete All to delete all cards added in iVMS-4200.
 Select one or multiple cards, and click Delete Card to delete selected cards added
in iVMS-4200.
 Card Encrypt is only available to cards added via card reader. Enabling Card
Encrypt can improve the card security to prevent it from being copied. But the
same time, the default key of all the available sectors of the card is modified.
Issuing Card
Click Issue Card to pop up card issuing window.

HIKVISION DS-KV8102-IP Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	1 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Megapixel	1.3 MP
Sensor type	CMOS
Maximum frame rate	25 fps
Maximum video resolution	1280 x 720 pixels
Proper use	Outdoor
Product color	Gray
Outdoor unit housing material	Plastic
International Protection (IP) code	IP65
LED type	IR
Outdoor unit power type	AC/DC
Power consumption (typical)	12 W
Operating relative humidity (H-H)	10 - 90 %
Door station operating temperature (T-T)	-40 - 70 °C
Operating system installed	Linux
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Indoor unit included	No

Weight and Dimensions

Depth	54.4 mm
Width	97 mm
Height	164 mm
Door station dimensions (WxDxH)	97 x 54.4 x 164 mm
