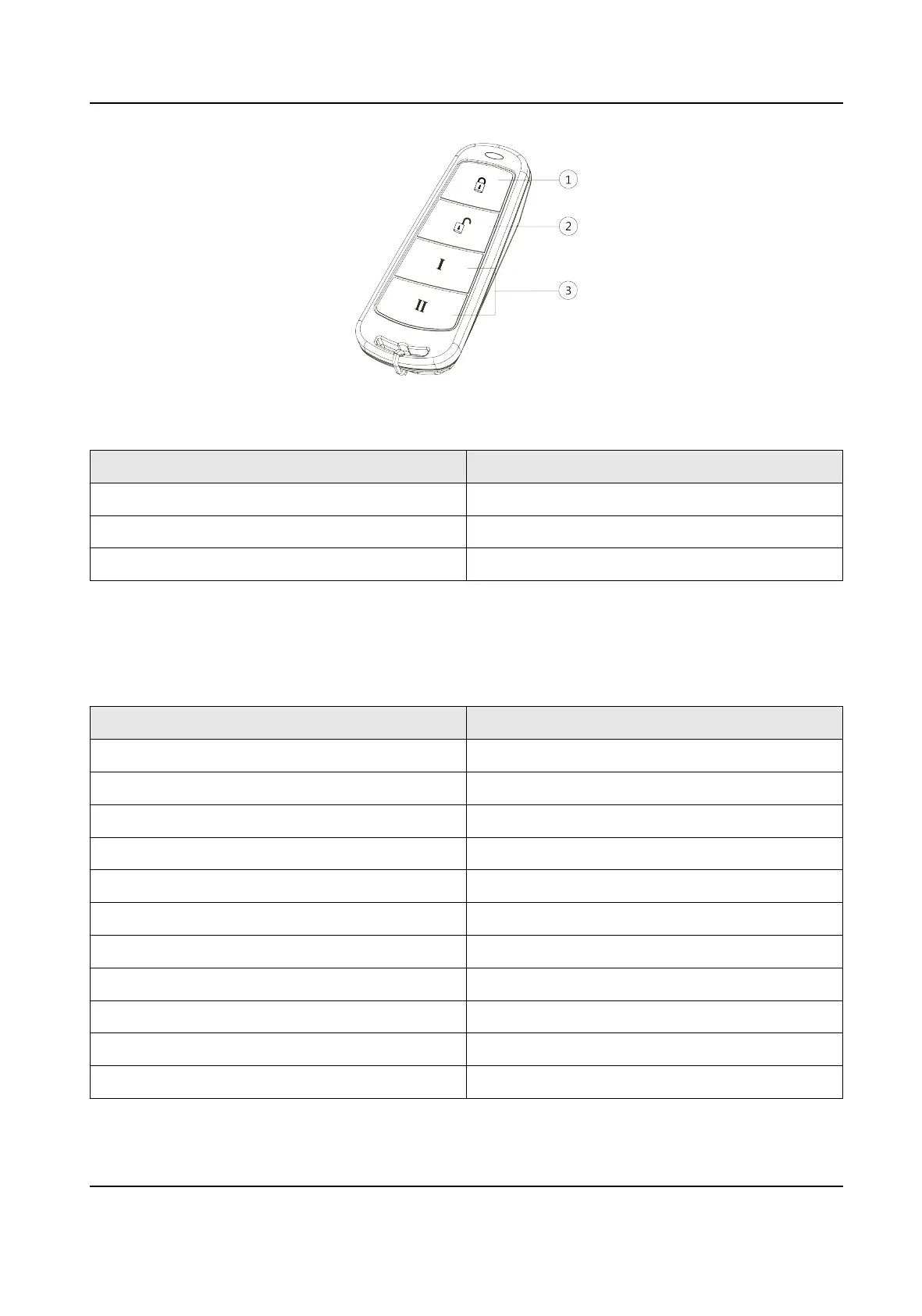

Figure 5-3 Type Ⅱ Keyfob
Table 5-2 Type Ⅱ Keyfob Keys
No. Descripon
1 Arming (Lock)
2 Disarming( Unlock)
3 Combo-Funcon Key
Custom Combinaon Funcons (except Arming +Ⅱ and Disarming +Ⅰ) : Away Arming, Stay
Arming, Disarming, Panic Alarm, Clearing Alarm, Fault Inspecon, and Arming Status Check.
The following table shows the keyfob
operaon and responded indicaons.
Table 5-3 Type
Ⅱ Keyfob Operaons and Indicaons
Keyfob Operaon Result Indicaon
Armed Red LED Flashes Once
Arming Failed Green LED Flashes Once
Arming Green LED Flashes 9 Times
No Arming Permission Yellow LED Flashes 4 Times
Fault Checking Finished Yellow LED Flashes 4 Times
Alarm Cleared Green LED Flashes Once
No Permission for Clearing Alarm Yellow LED Flashes 4 Times
Disarmed Green LED Flashes Once
No Disarming Permission Yellow LED Flashes 4 Times
Panic Alarm Uploaded Green LED Flashes Once
No Panic Alarm Permission Yellow LED Flashes 4 Times
