Entrance/Exit Station Quick Start Guide
21

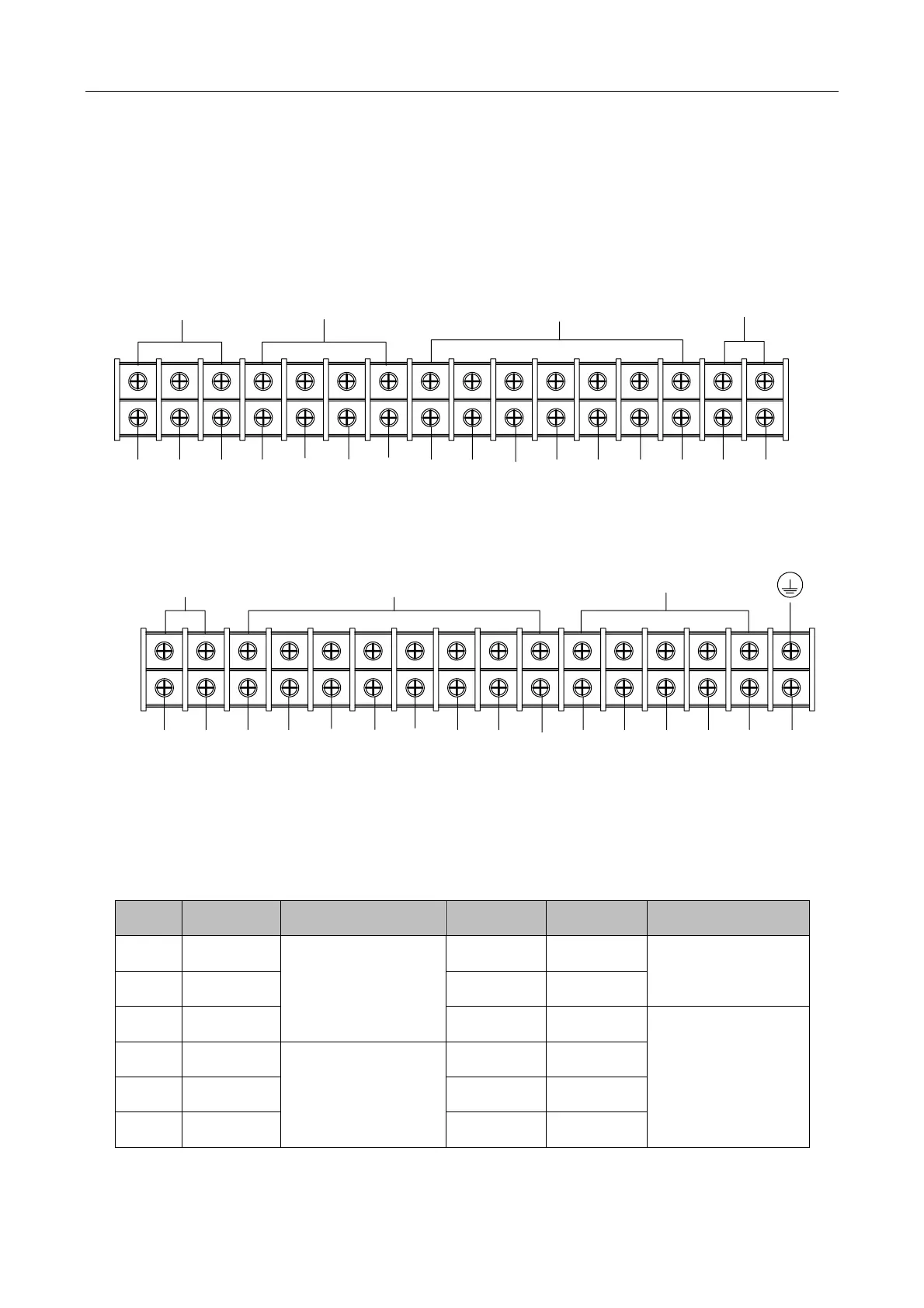

Appendix A Peripheral Interfaces
Open the cover of the station, and you can see the peripheral interfaces.
Rise
FallStop
Common
Terminal
Rising
Limit
Falling
Limit
12V NO1
Barrier Gate
GNDD4- D4+
Reserved RS-485
GND GND D3- D3+ C1
External LED Display Alarm Output
Figure A-1 Line Bank (Left)
GND
W0+
W1-
A
GND
B
AI1 12V
GND
12V W1+
F+ F-W0- G
Vehicle Detector Output
GND
Alarm Input Wiegand
Figure A-2 Line Bank (Right)
Refer to Table 4-1 for the interface description of right line bank.
Table 4-1 Right Line Bank Interface Description
No.
Name
Description
No.
Name
Description
1
D4+
RS-485 interfaces
17
NO1
Alarm output
interfaces
2
D4-
18
C1
3
GND
19
12V
Wiegand
interfaces,
connecting to
remote card
reader
4
12V
External LED
display interfaces
20
W0+
5
D3+
21
W0-
6
D3-
22
GND
