E Series Network Speed Dome·Quick Guide
17
Lock
Screw
Push
Rotate

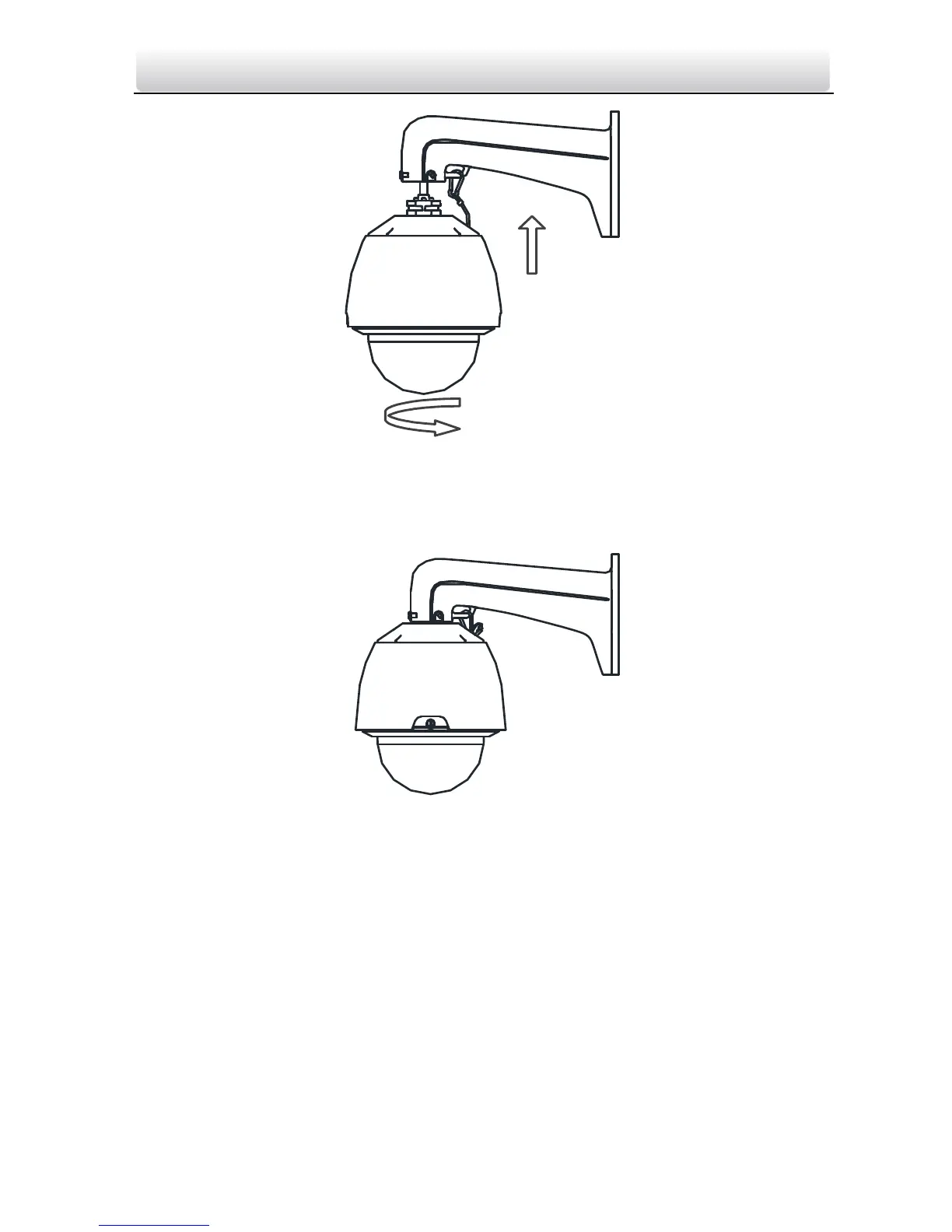

Figure 2-10 Align to the Mount
4. Use L-wrench to tighten the lock screws to secure the speed dome and the wall mount.
Figure 2-11 Tighten the Lock Screws
IR Network Speed Dome Installation
Steps:
1. Remove the protective sticker from the speed dome.
