E Series Network Speed Dome·Quick Guide
21
Toggle
Bolt

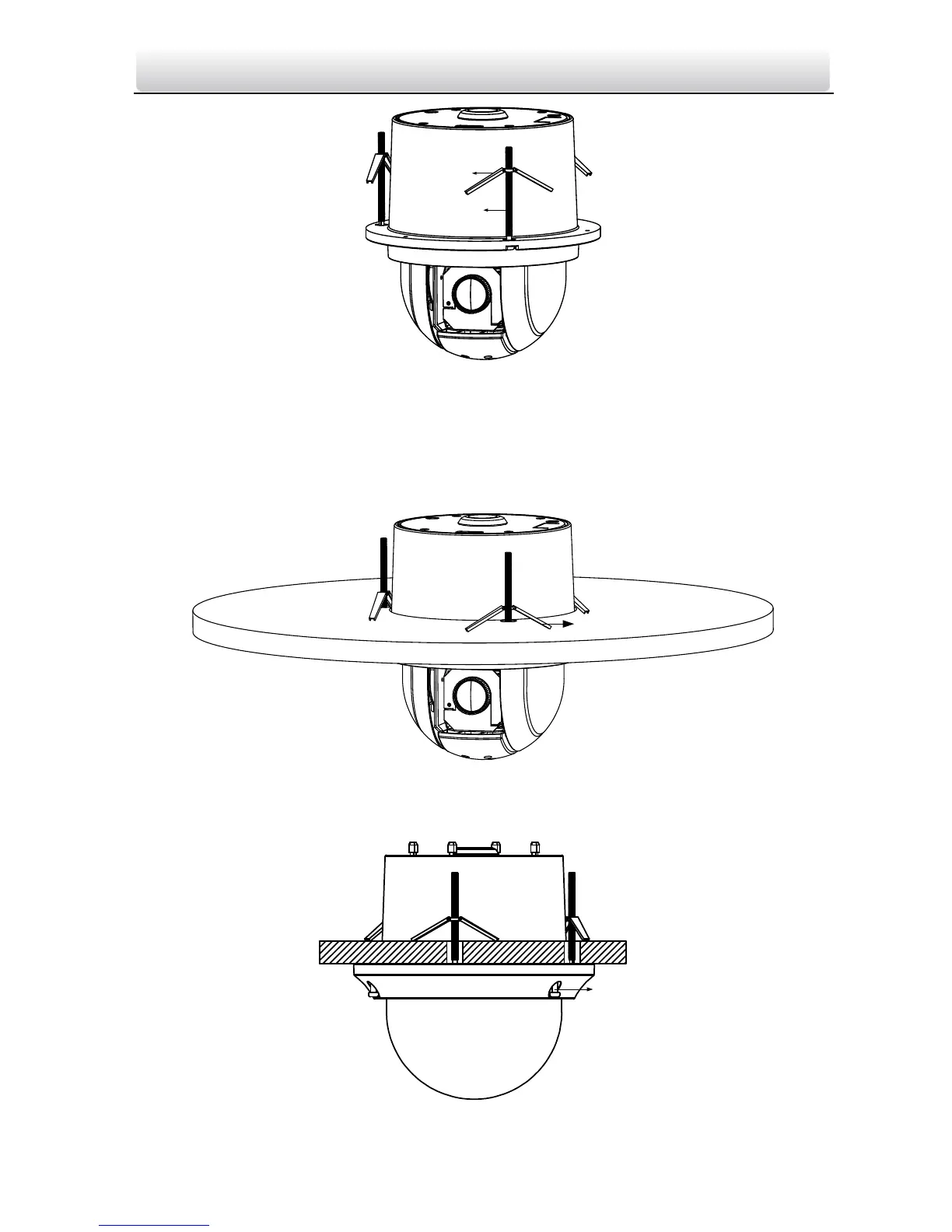

Figure 2-18 Install the Toggle Bolts
4. Align the toggle bolts with the screw holes on the ceiling.
5. Push the dome to the mounting hole on the ceiling.
6. Rotate the bolts again. The toggle will automatically rotate down to secure the dome to the
ceiling.
Ceiling
Toggle
Figure 2-19 Install the Dome to the Ceiling
7. Secure the lower dome to the back box with three screws as shown in Figure 2-20.
Screws
Figure 2-20 Install the Lower Dome
