HIKVISION E Series Quick Guide

E Series Network Speed Dome·Quick Guide
33
Steps:
1). Route the cables for the speed dome. Align the bottom of the speed dome with the
mounting base.
2). Line up the direction of arrow with the spring end of the mounting base.
3). Push the speed dome upwards and then forwards in the direction of arrow. When the speed
dome is placed in position, the spring will automatically snap into the lock clip firmly. Refer
to the following figure.
Line up
① Push
upwards
② Push forwards
Lock clip
Spring

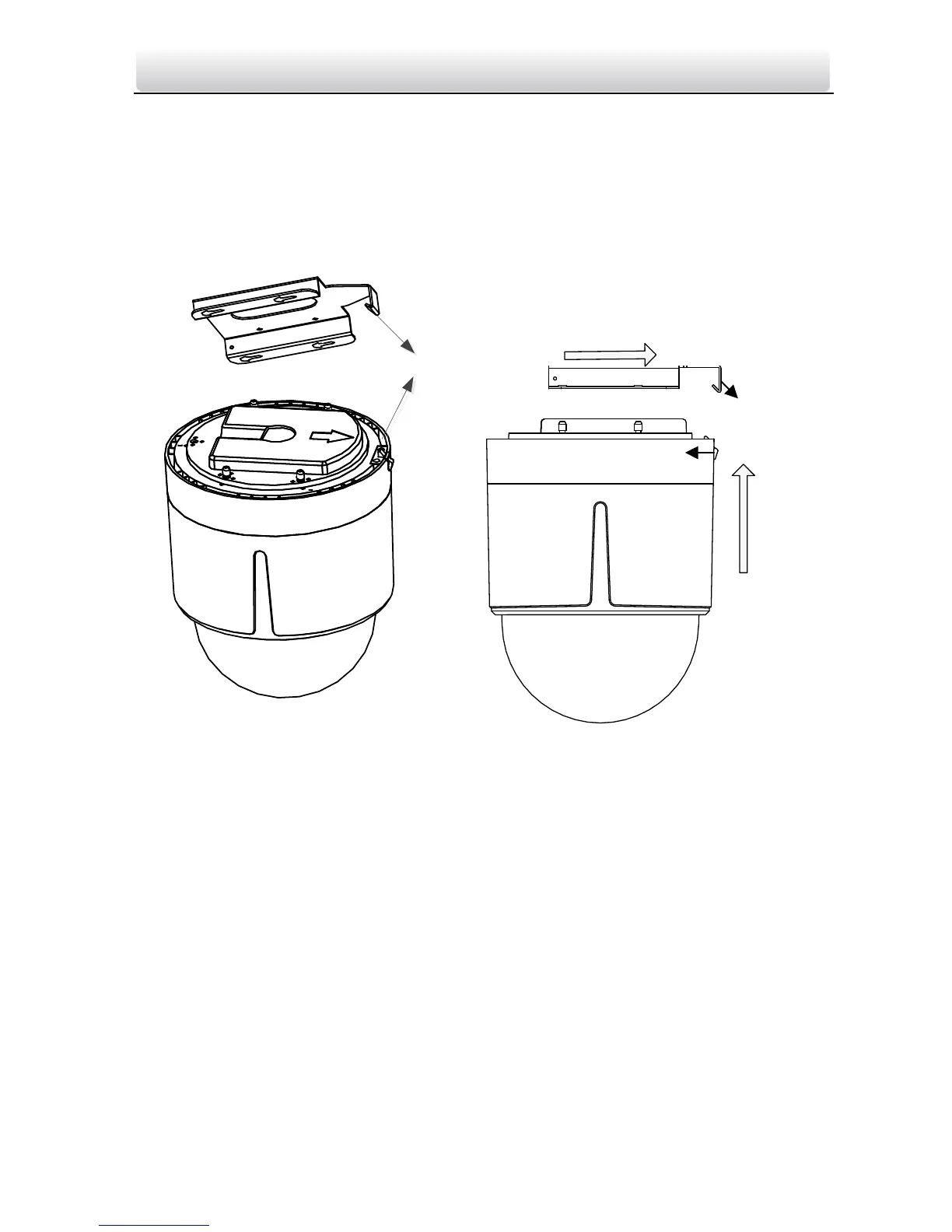

Figure 2-43 Attach the Back Box to the Mounting Base
Notes:
 Please remove the protective film on the lower dome after the installation is finished.
 Do not touch the bubble of the lower dome directly by hand. The image blurs otherwise.
