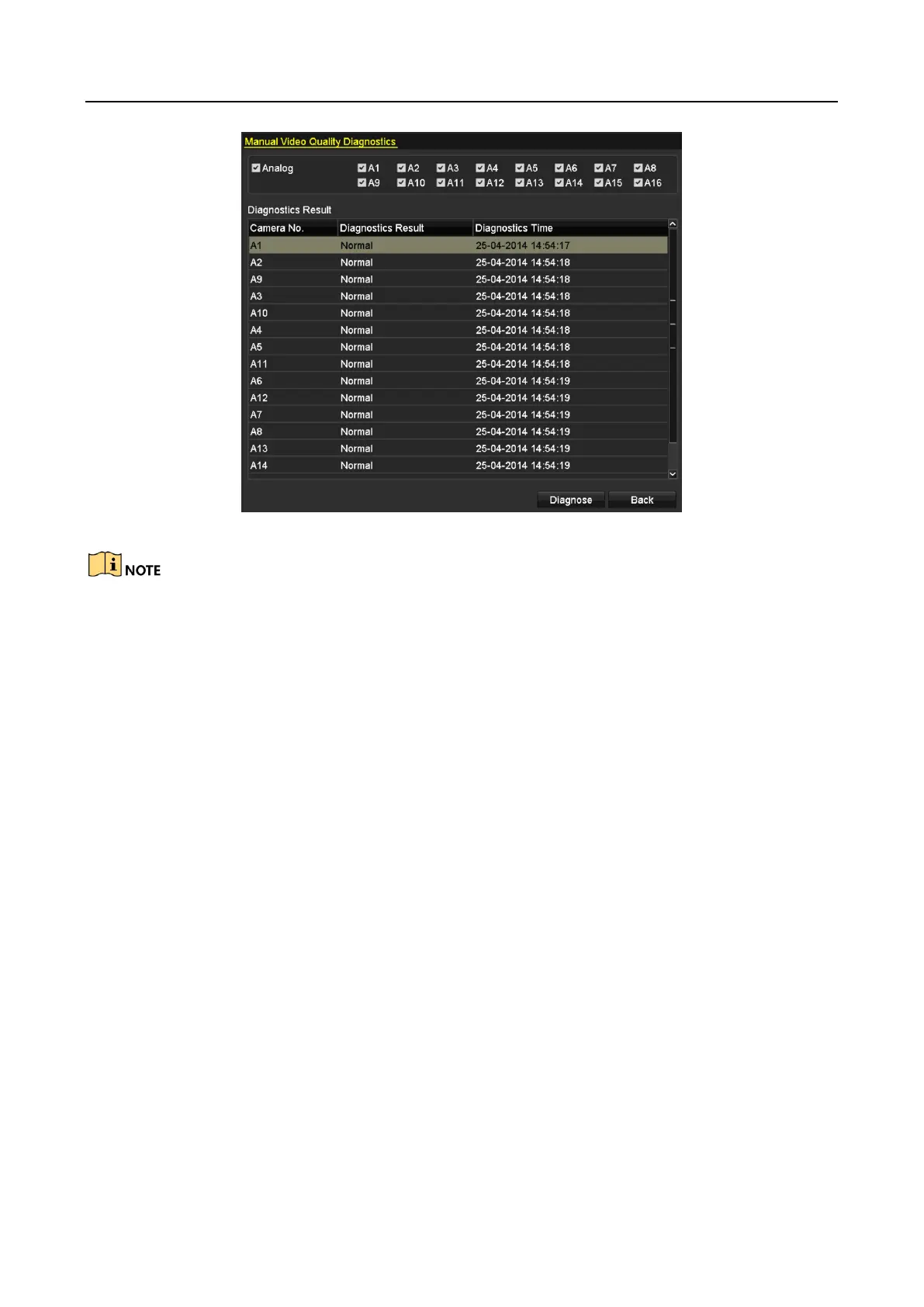

Figure 3-14
D
iag
nos
tic
s
Re
su
lt
Connect the camera to the device for the video quality diagnostics.
Three exception types can be diagnosed: Blurred Image,
Abno
rmal Brightness and Color
Cast.
55
57
