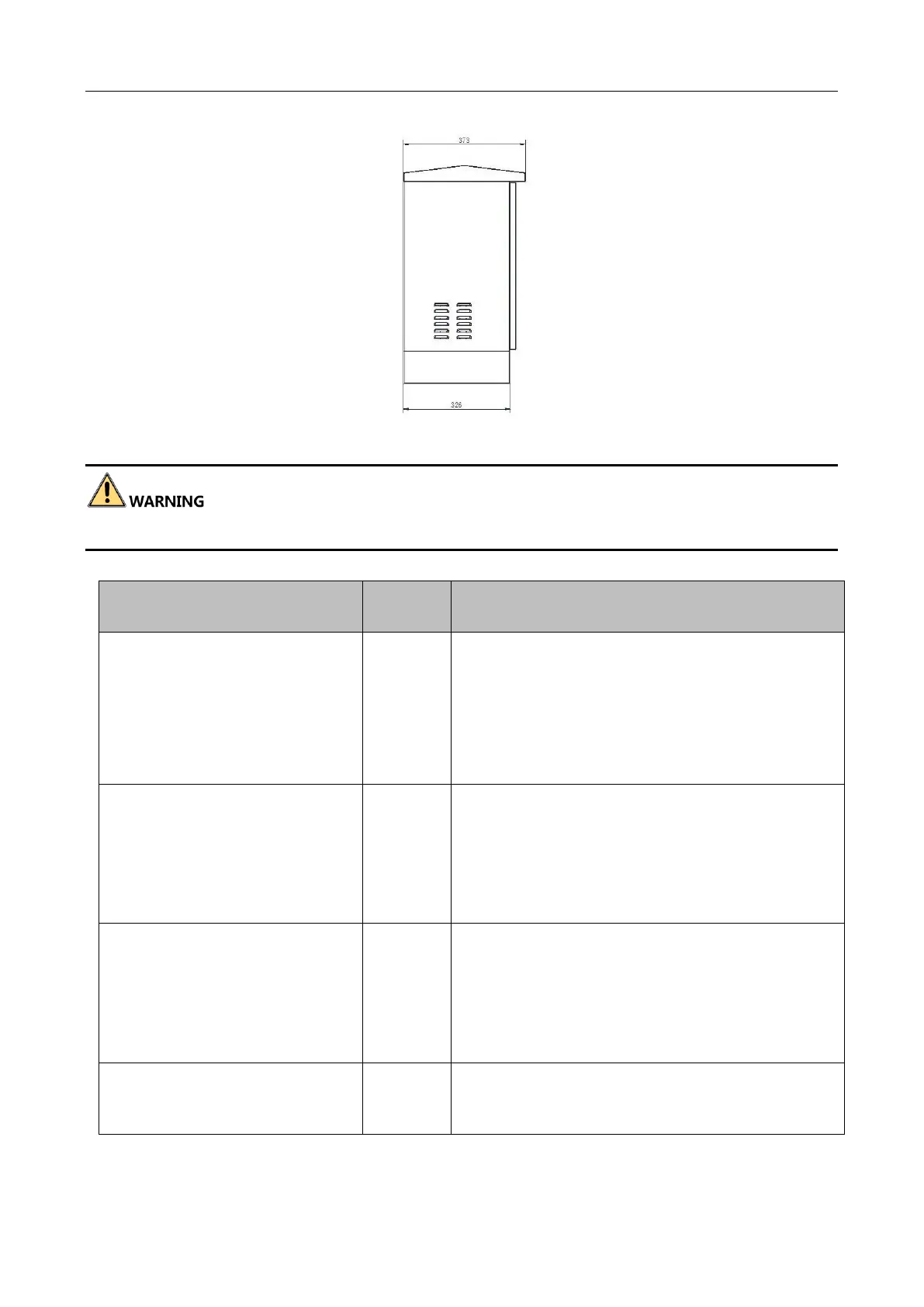

Figure 1-4 Control Cabinet Dimensions
The control cabinet has strong electricity module inside. Watch out for electricity safety during use.
Table 1-1 Key Components
Name
Quantity
Description
Trigger Module (photoelectric
mode)
2
Infrared photoelectric switch with continually
adjustable sensitivity regulator, IP67, less than
2ms response time, less than 1 mm repeatability.
Note: Inductive loops mode adopts inductive
loops for triggering.
Speed Detection Module
1
Built-in lens and light cup; detect speed via image
feature points and output frequency pulse signal
in proportion with speed; match vehicle speed of
no more than 25 km/h automatically; model for
high speed requirement can be customized
Under Vehicle Scan Module
1
2K black-and-white line scan camera; up to 30
tons of load-bearing capability (model for ultra
large load-bearing requirement can be
customized); IP68 (model for special working
environment requirement can be customized)
LED Supplement Light Module
2
4 high-brightness LED lights dedicated for line
scan
