HIKVISION Network Video Recorder Quick Operation Guide

Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR
6

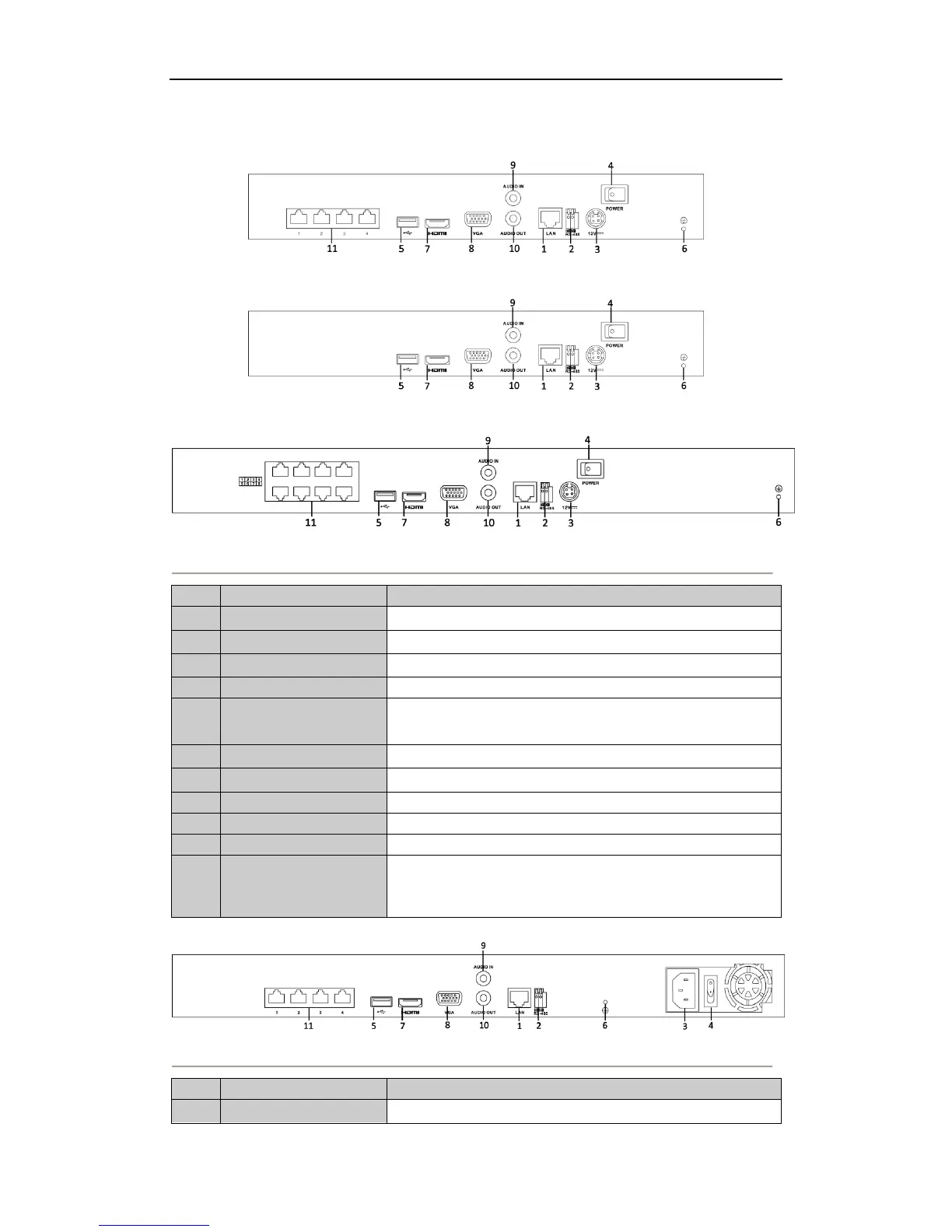

Rear Panel
DS-7604NI-SE/N
DS-7604&7608&7616NI-SE
DS-7608&7616NI-SE/N
No.
Item
Description
1
LAN Network Interface
Connector for LAN (Local Area Network).
2
RS-485 Interface
Connects to RS-485 devices.
3
Power Supply
12VDC power supply
4
Power Switch
Switch for turning on/off the device.
5
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
6
GND
Ground (needs to be connected when NVR starts up).
7
HDMI Interface
HDMI video output connector.
8
VGA Output
DB9 connector for VGA output. Display local video output and menu.
9
Audio In
RCA connector for voice talk input
10
Audio Out
RCA connector for audio output
11
Network Interfaces with
switch function
(for DS-7600NI-SE/N)
Network interface for the cameras.
DS-7600NI-SE/P
No.
Item
Description
1
LAN Network Interface
Connector for LAN (Local Area Network).
