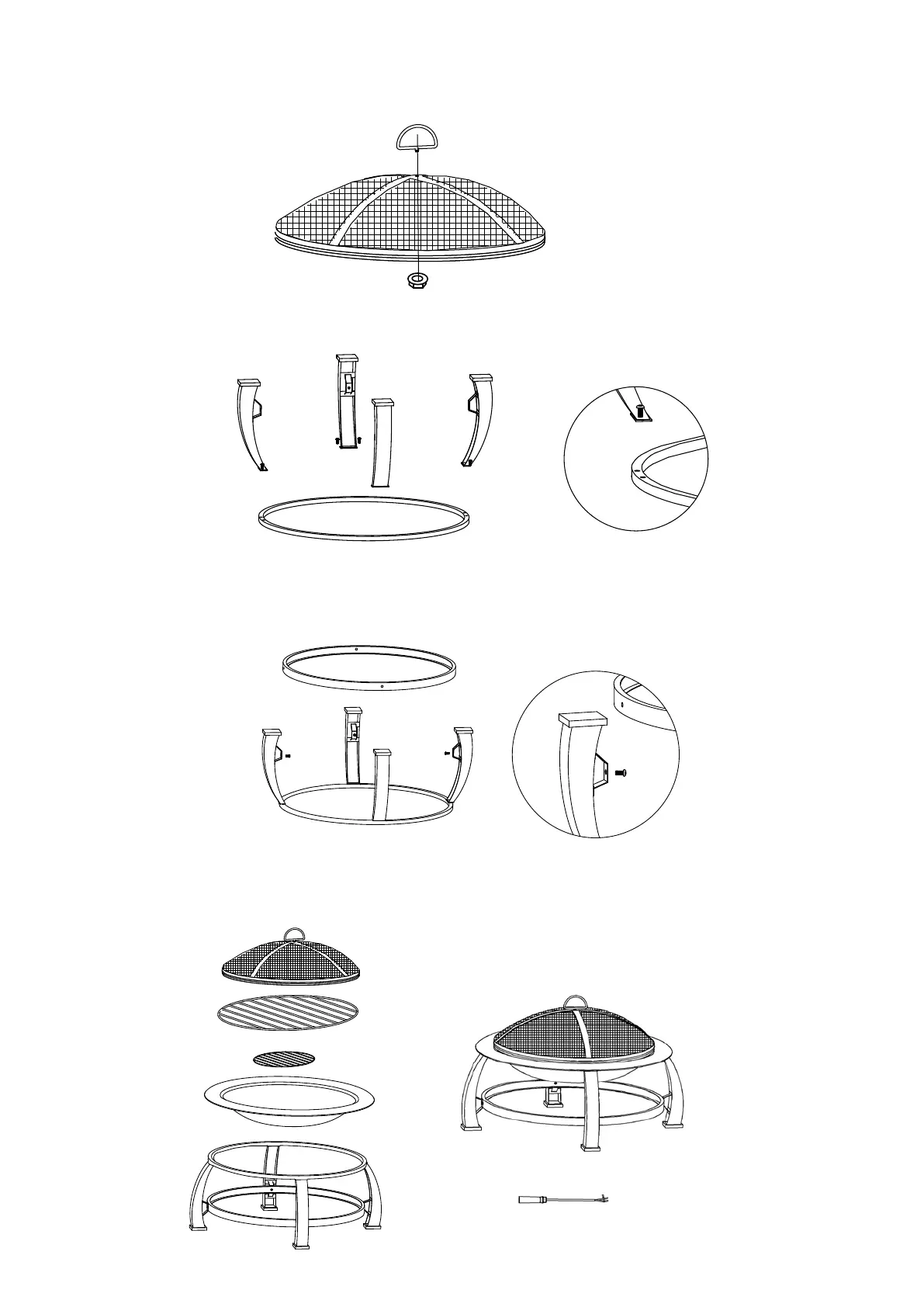

Step 1: Attach Handle (A) to Mesh Cover (B) using Nut (BB). Fully tighten the nut.
St
ep 2: Attach Legs (G) to Upper Ring (F) using M6 x 10mm Bolts (AA). Do not tighten the bolts until all of
them are placed correctly.
Step 3: Attach Lower Ring (H) to Legs (G) using M6 x 10mm Bolts (AA),tighten all the hardware.
Step 4: Place Fire Bowl (E) on the assembled base, put Wood Grate (D), Cooking Grill (C) and Mesh Cover
(B) on the fire bowl in order. Keep Poker (I) near the fire pit for use anytime. Now the fire pit is ready for
use.
