7
ASSEMBLY INSTRUCTIONS
Hardware Used
AA
BB
Hardware Used
CC
1
2
3
TT

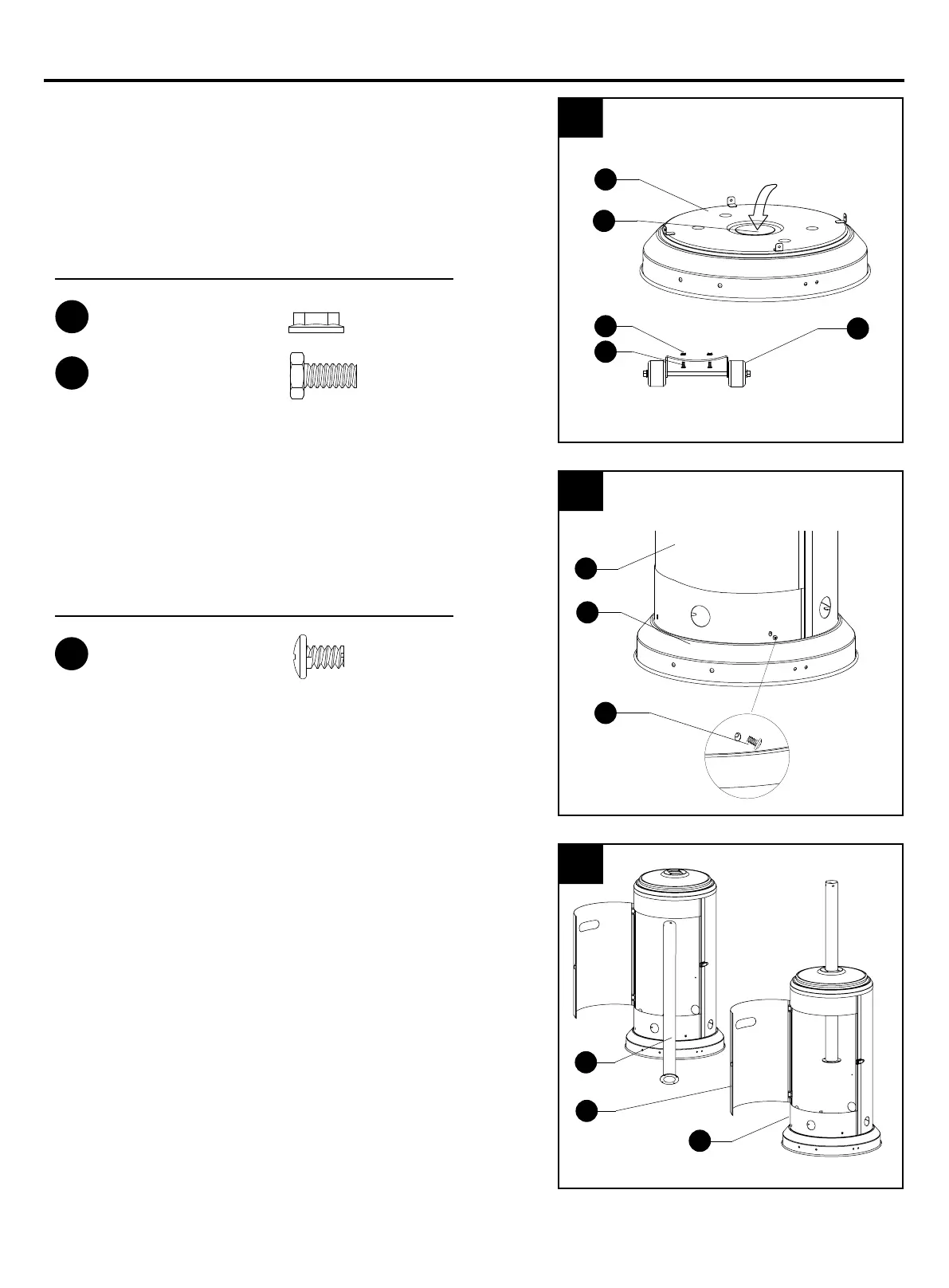

1. Line up holes on the bracket of wheel assembly (O)
with the corresponding holes on base (M), then insert
M8 x 16 mm bolts (BB) through holes. Hand tighten with
M8 flange nuts (AA). Be sure the wheel assembly (O) is
parallel to the base (M).
Note: To improve stability, the preassembled bucket (N)
can be filled with sand (not included).
2. Attach cylinder housing (H) loosely to base (M) with
M5 x 8 mm screws (CC).
3. Open the preassembled door (I) on cylinder housing
(H) and place post (J) through the hole on the top.
x 2
M8 x 16 mm Bolts
M8 Flange Nut
x 2
M5 x 8 mm Screw
x 4
J
I
H
H
M
N
M
AA
CC
BB
O
Fill sand
To Next Page
