Hill-Rom MC700 - Remove Foot End Brake Components; Remove Head End Brake Components

Page 2 of 10 187155 REV 1 June 23, 2014

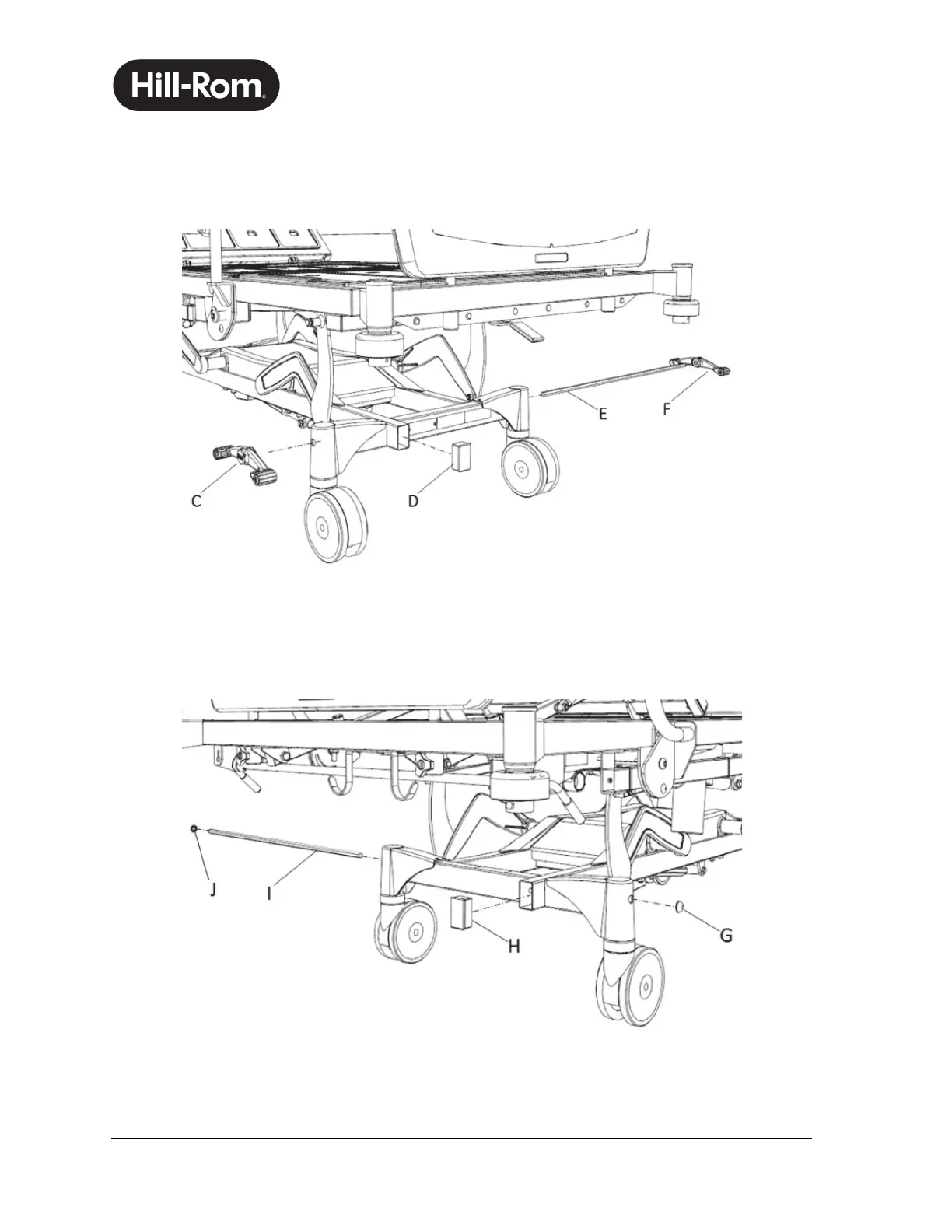

5. Remove the brake pedal (C), plastic cap (D), hex bar foot end (E), and brake pedal (F)
(see figure 2).
Figure 2. Foot End Brake Disassembly
6. From the head end of the bed, remove the helmut cap (G), plastic cap (H), hex bar
head end (I), and helmut cap (J) (see figure 3).
Figure 3. Head End Brake Disassembly
