7. Pull the central link rod (K) to access the transmission lever (L) (see figure 4).
8. Remove the transmission lever (L), and push the back central link rod (K) inside the
base frame tube (M).

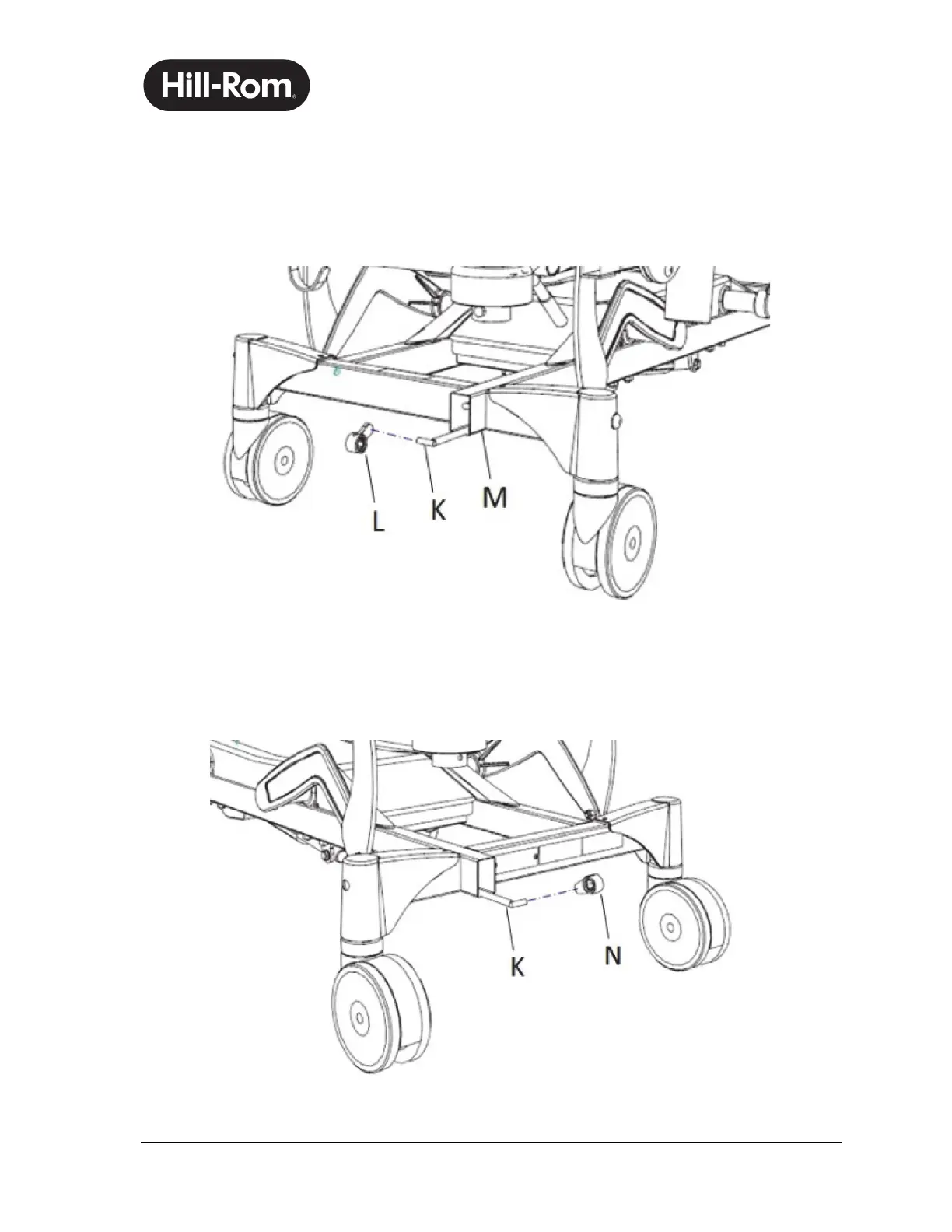

Figure 4. Head End Transmission Lever
9. From the foot end of the bed, pull the central link rod (K) and remove the transmission
lever bariatric (N) (see figure 5).
Figure 5. Foot End Transmission Lever
