Page 4 of 10 187155 REV 1 June 23, 2014
10. Rotate the central link rod (K) until the short pin (O) is pointed upwards (see figure 6).
11. Pull the central link rod (K) out of the base frame tube.

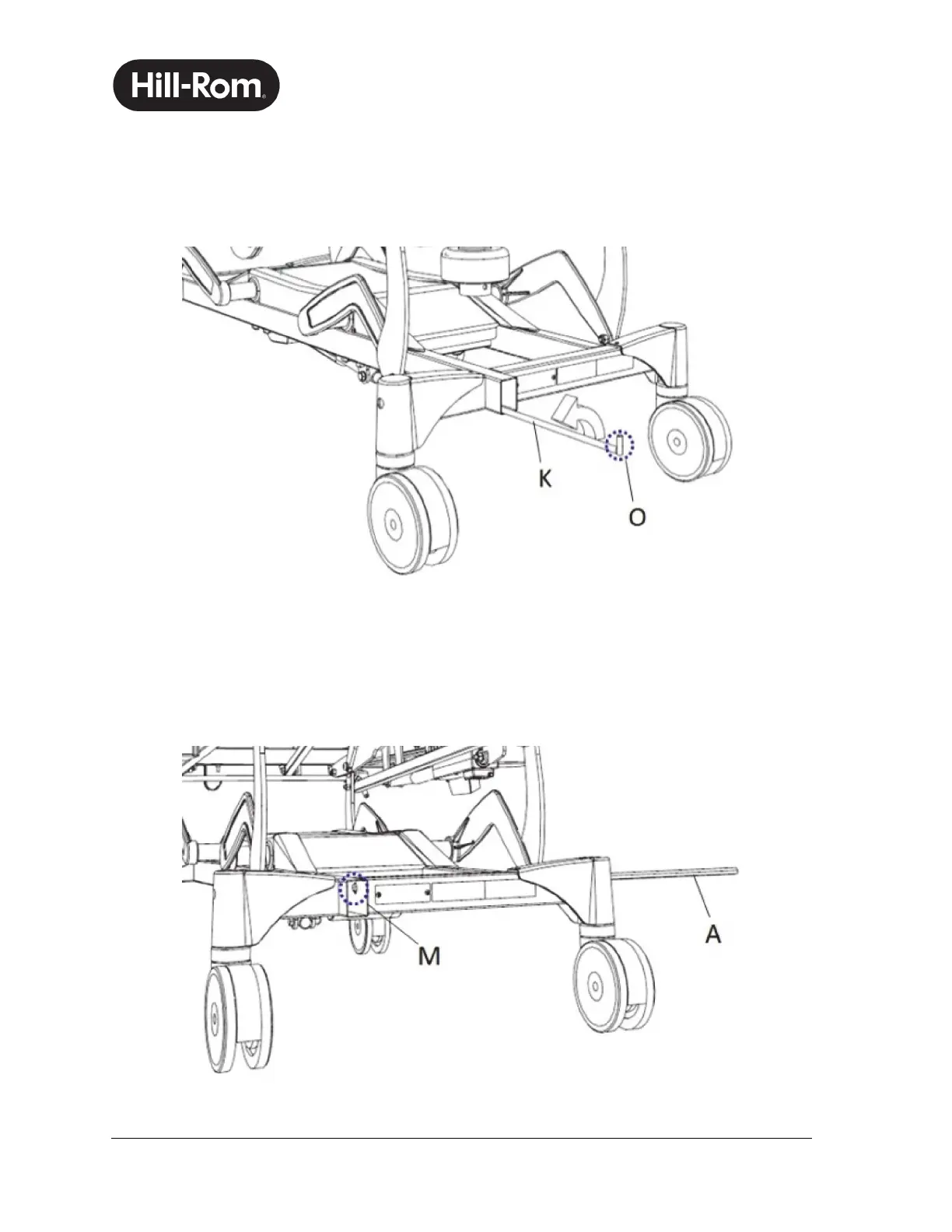

Figure 6. Foot End Central Link Rod Removal
Replacement
1. Insert the new hex bar foot end (A) until it goes through the first hole of the base frame
tube (M) (see figure 7).
Figure 7. Foot End Hex Rod Assembly
