2. Install a bushing on hole (H1) using the protruding end of the hex bar foot end (A) as
the guide.
3. Install a bushing on hole (H2) (see figure 8).

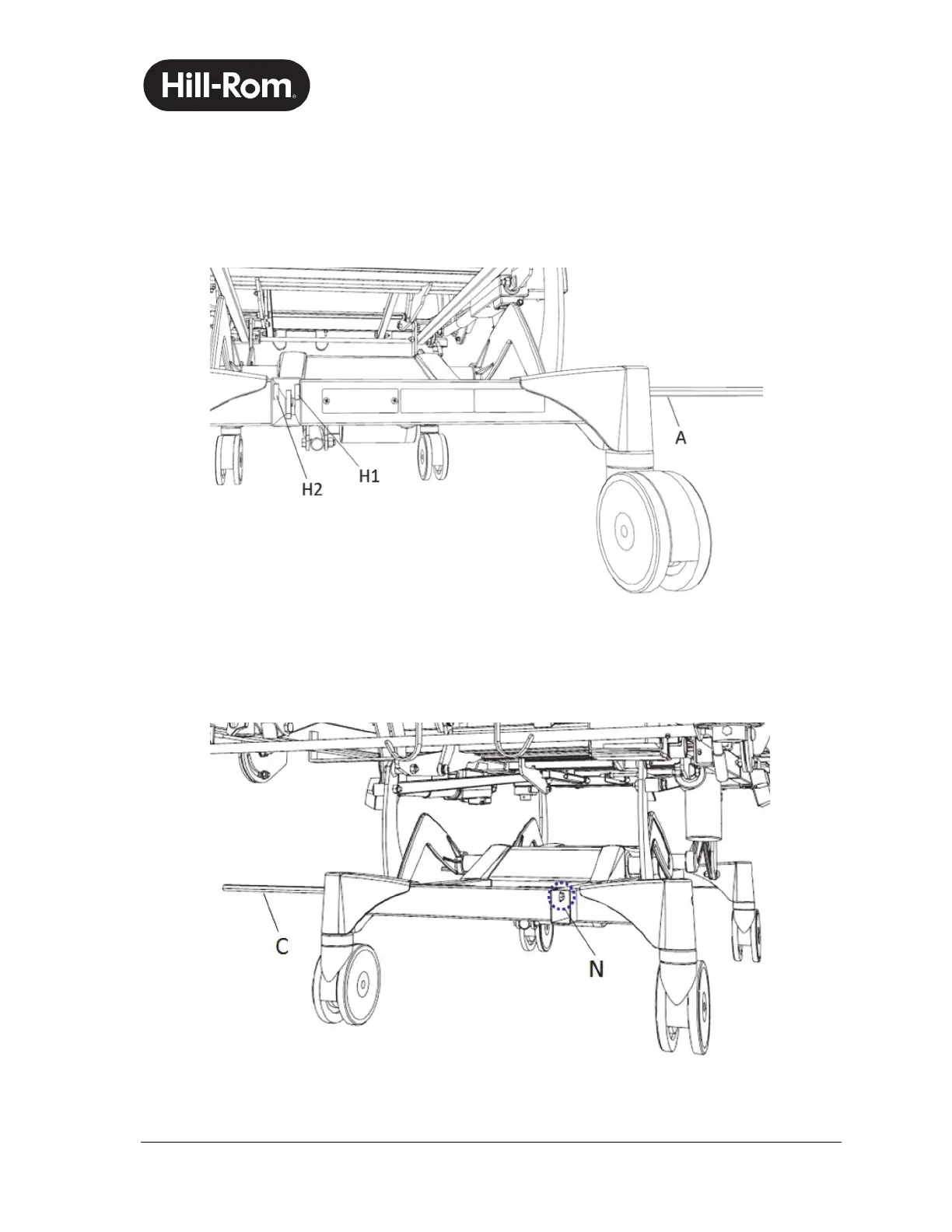

Figure 8. Foot End Bushing Assembly
4. At the head end of the bed, insert new hex bar head end (C) until it goes through the
first hole of the base frame tube (N) (see figure 9).
Figure 9. Head End Hex Rod Assembly
