Page 6 of 10 187155 REV 1 June 23, 2014

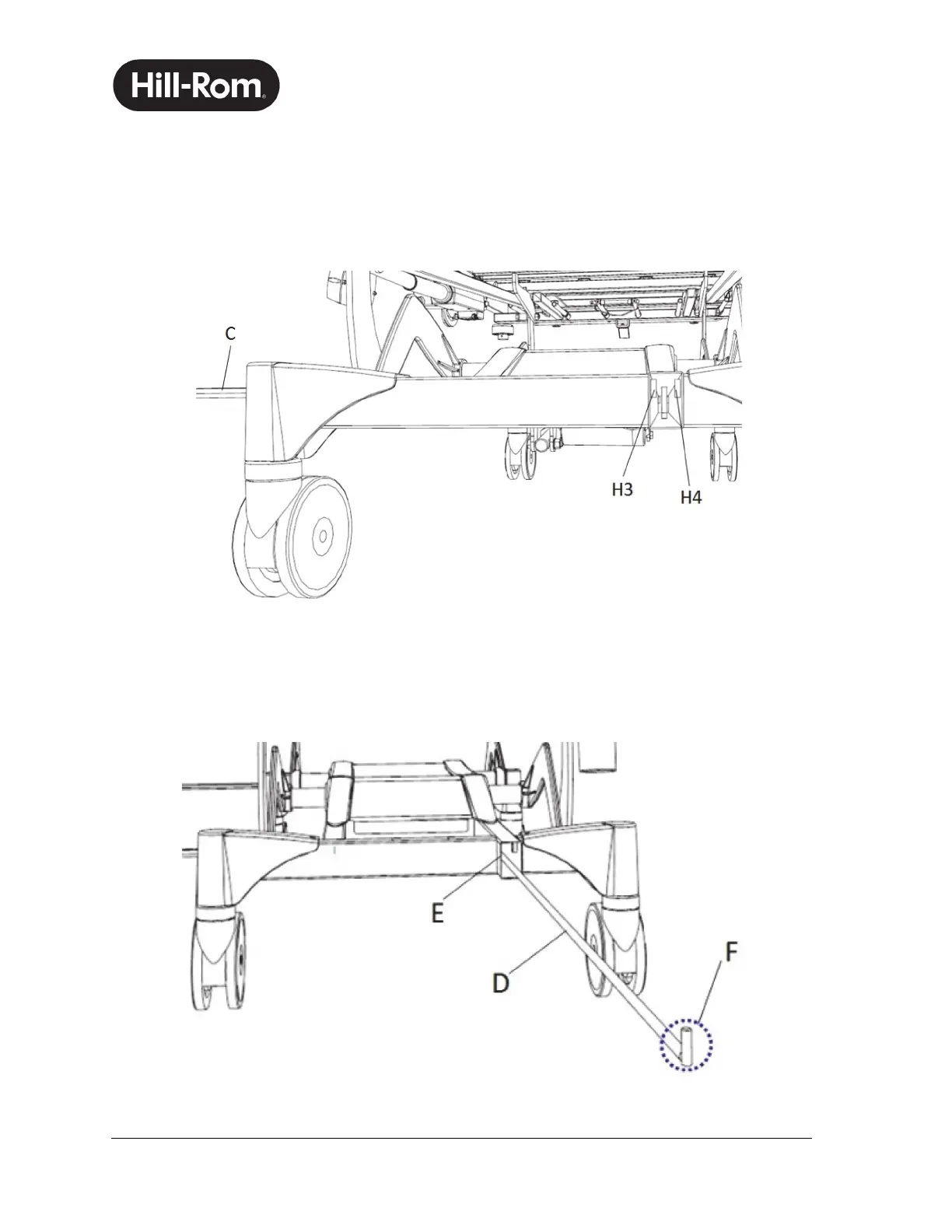

5. Install a bushing on hole (H3) using the protruding end of the hex bar head end (C) as
the guide (see figure 10).
6. Install a bushing on hole (H4).
Figure 10. Head End Bushing Assembly
7. Install the new central link rod (D) into the base frame tube (E) with the short pin (F)
pointed upwards (see figure 11).
Figure 11. Head End Central Link Rod Installation
