8. Install the new transmission lever (G) (see figure 12).
9. Push the transmission lever (G) and central link rod (D) inside the base frame tube to
expose the opposite end of the central link rod at the foot end of the base frame tube.

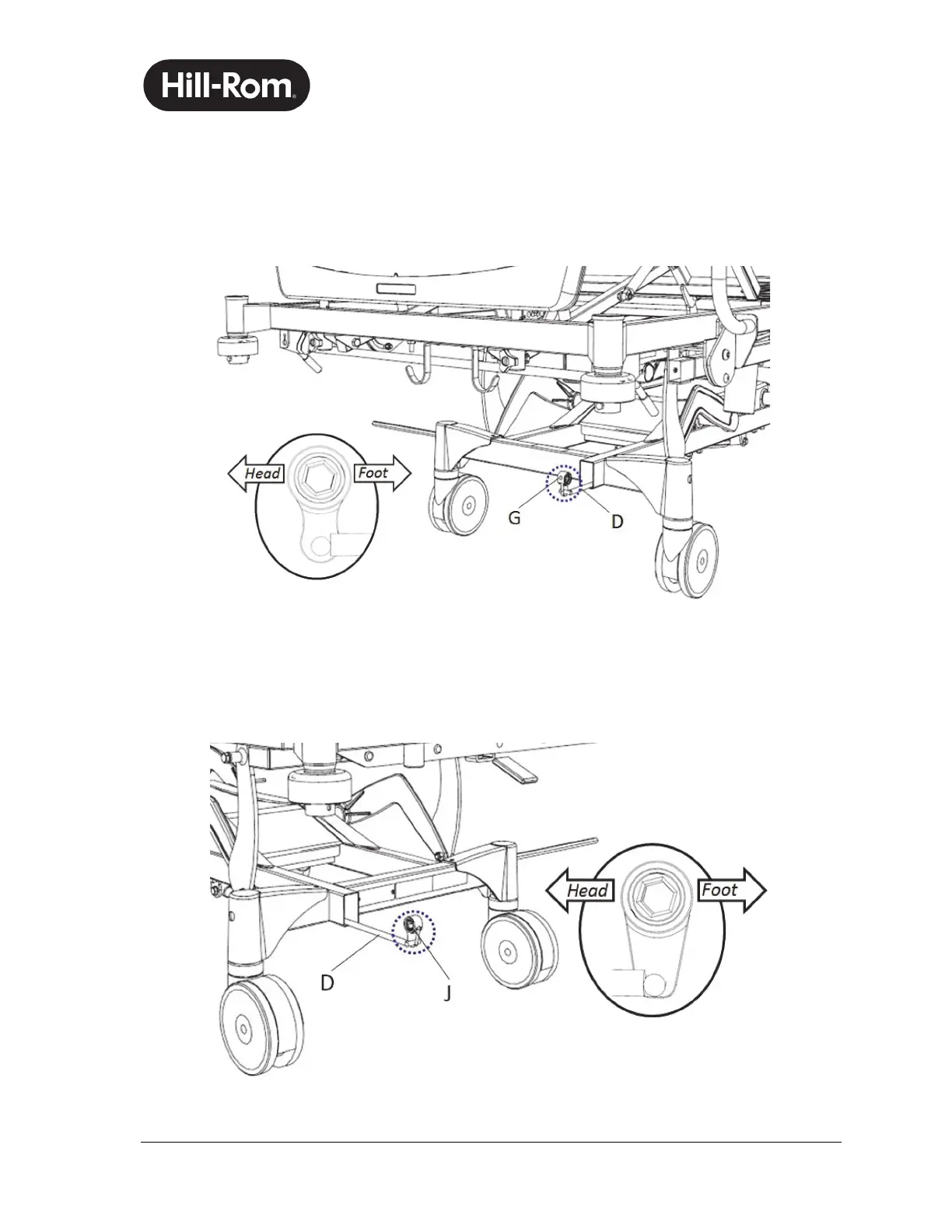

Figure 12. Head End Transmission Lever Installation
10. At the foot end of the bed, install the new transmission lever bariatric (J) (see figure
13).
Figure 13. Foot End Transmission Lever Installation
