Hill-Rom MC700 - Position Foot End Lever and Hex Bar; Position Head End Lever and Hex Bar

Page 8 of 10 187155 REV 1 June 23, 2014
11. Position the transmission lever bariatric (J) between the bushings (see figure 14).
12. While keeping the transmission lever bariatric (J) in the upright position, push in the
hex bar foot end (A) until the leading end goes through the other caster.

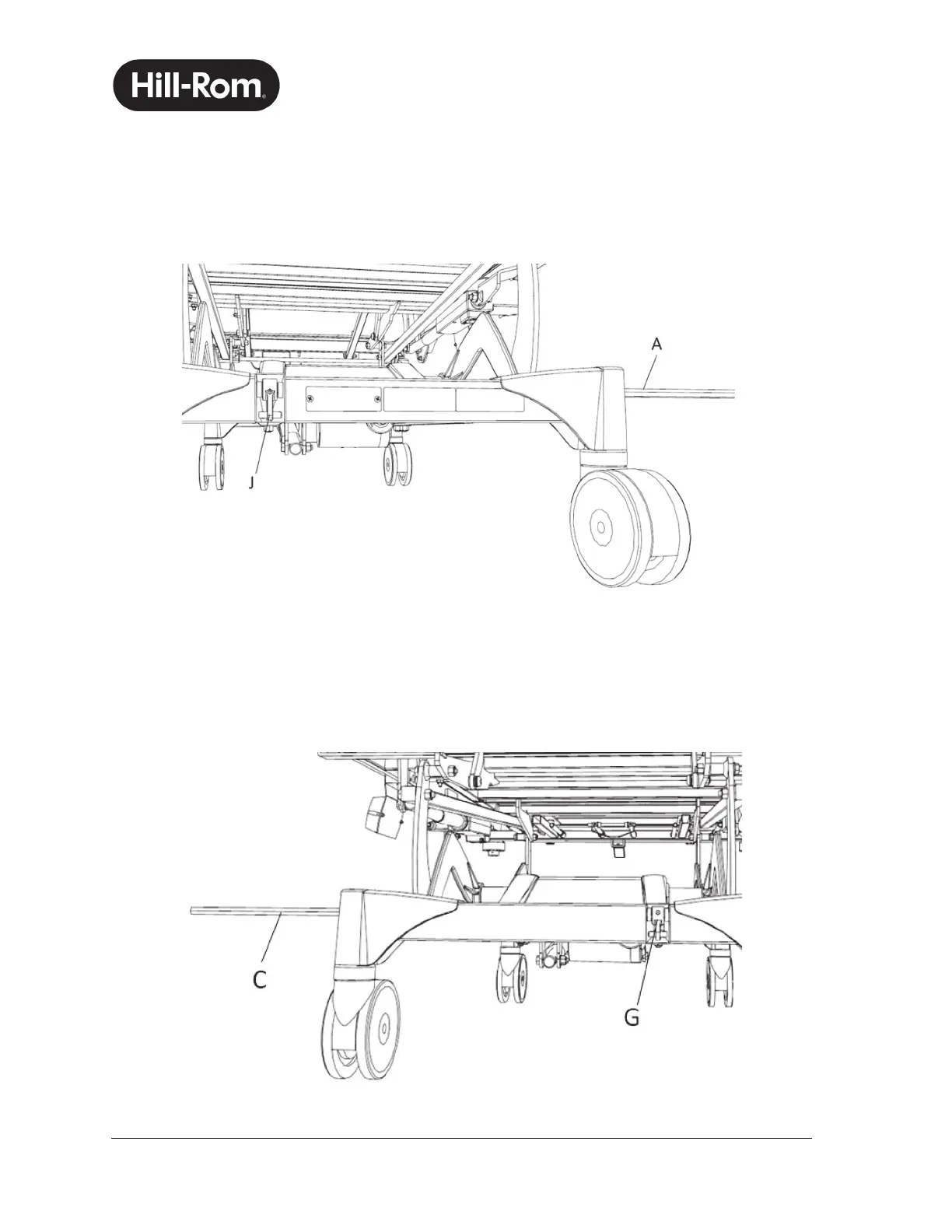

Figure 14. Foot End Hex Bar Installation
13. Position the head end transmission lever (G) between the bushings (see figure 15).
14. While keeping the transmission lever (G) in the upright position, push the hex bar head
end (C) until the leading end goes through the other caster.
Figure 15. Head End Hex Bar Installation
