June 23, 2014 187155 REV 1 Page 9 of 10
15. Install helmut caps (retainers) (L1, L2) on the hex rod head end (see figure 16).
16. Install the brake pedals (P1, P2) (torque setting at 15 ± 0.5 N-m).

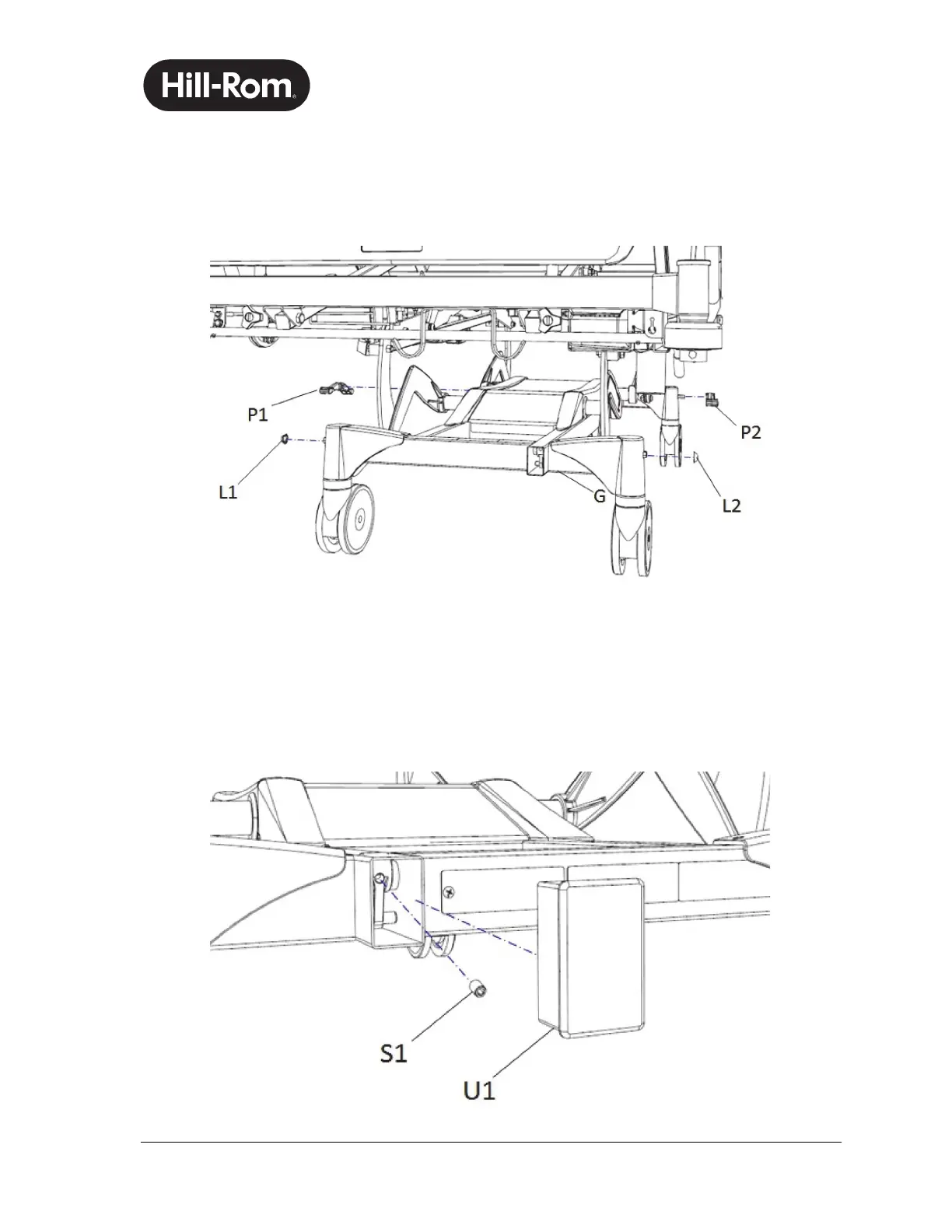

Figure 16. Retainers and Pedal Assembly Installation
17. Test the brakes (brake -neutral - steer).
18. Set the brakes to Neutral.
19. Install a grub screw (S1) (torque setting at 6.5 ± 0.5 N-m) on the foot end transmission
lever, and install the cover (U1) (see figure 17).
Figure 17. Foot End Grub Screw and Cover Installation
