English 9

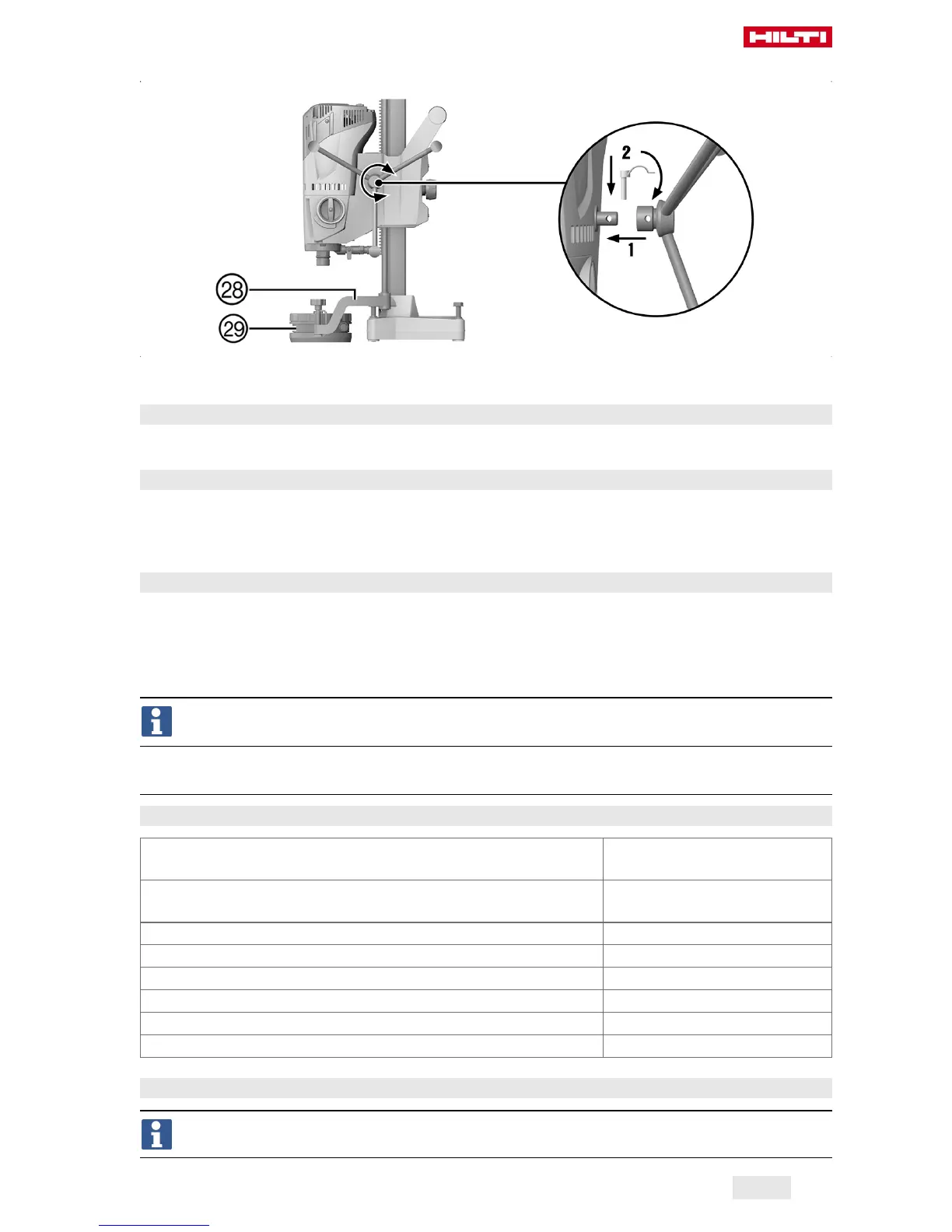

3.2.3 Water collection system
[
Water collector holder
]
Water collector
3.3 Service indicator
The product is equipped with a service indicator LED.
3.4 Items supplied
Diamond core drilling machine, hand wheel, operating instructions.
The drill stand is supplied as a separate unit. Other system products approved for use with this product can
be found at your local Hilti Store or at: www.hilti.group.
3.5 Using a generator or transformer
This machine can be powered by a generator or transformer when the following conditions are fulfilled:
The generator or transformer’s power output must be at least twice the rated input power shown on the
machine's type identification plate, the operating voltage of the transformer or generator must always be
within +5 % and -15 % of the machine's rated voltage and the frequency must be 50 to 60 Hz and never
above 65 Hz and the transformer or generator must have automatic voltage regulation with starting boost.
Switching other power tools, machines or appliances on and off can cause undervoltage and/or
overvoltage peaks, resulting in damage to the machine.
4 Technical data
4.1 Technical data
Weight (600 mm rail) in accordance with EPTA procedure 01
9.8 kg
(21.6 lb)
Max. permissible water supply pressure
6 bar
(90 psi)
Rated speed under no load, 1st gear
650 /min
Rated speed under no load, 2nd gear
1,380 /min
Dimensions of drill stand, short rail (L x W x H)
330 mm x 147 mm x 600 mm
Dimensions of drill stand, medium-length rail (L x W x H)
330 mm x 147 mm x 720 mm
Dimensions of drill stand, long rail (L x W x H)
330 mm x 147 mm x 830 mm
Protection class
Protection class I (earthed)
4.2 Use of the machine with various items of equipment
* Your machine's core bit diameter is stated on the type identification plate.
Printed: 24.05.2018 | Doc-Nr: PUB / 5431649 / 000 / 00
