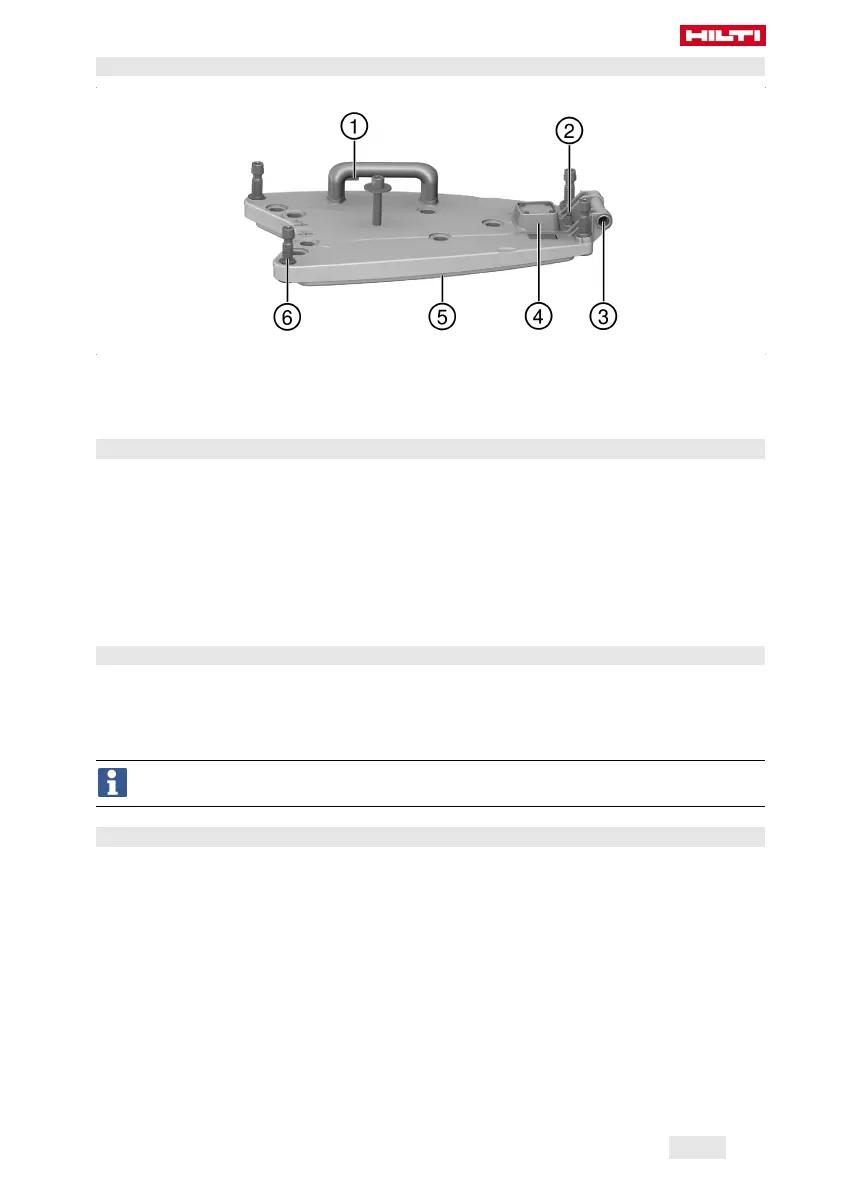

3.3 Vacuum base plate (accessory)
@
Vacuum release valve
;
Vacuum hose connector
=
Wheel assembly mount
%
Pressure gauge
&
Vacuum seal
(
Leveling screw (4x)
3.4 Intended use
The product described is an electrically powered diamond core drilling machine. It is designed for the rig-
based wet drilling of through-holes and blind holes in (reinforced) mineral materials. Hand-held use of the
diamond core drilling machine is not permitted.
▶ Always use a drill stand when using the diamond core drilling machine. The drill stand must be sufficiently
anchored in the base material by an anchor base plate or vacuum base plate.
▶ Do not use a hammer or other heavy object to adjustment the base plate.
▶ Operate the machine only when it is connected to a power supply providing a voltage and frequency in
compliance with the information given on its type identification plate.
▶ Comply with the safety rules and operating instructions for the accessories used.
3.5 Items supplied
Items supplied, DD 200 for DD-HD 30:
• Diamond core drilling machine, operating instructions
Items supplied: DD 200 for DDST 200
• Diamond core drilling machine, hand wheel/lever, hex key, operating instructions
Other system products approved for use with this product can be found at your local Hilti Store or at:
www.hilti.group
3.6 Service indicator and drilling performance indicator
The diamond core drilling machine is equipped with a service indicator and an LED drilling performance
indicator. For the following indicators, the diamond core drilling machine must be ready for operation
(plugged in and with a switched-on PRCD).
